BeagleBone®︎ AI - Technical Specifications

What is the BeagleBone AI?

BeagleBone AI, a new addition to the BeagleBoard.org BeagleBone family, is a high-end Single Board Computer aimed at developers interested in implementing machine-learning and computer vision with simplicity. BeagleBone AI simplify the use of artificial intelligence (AI) in daily application via the TI C66x digital-signal-processor (DSP) cores, two dual-core ARM Cortex-M4 co-processors for real-time control, two dual-core Programmable Real-Time Unit (PRU) subsystems and four Embedded Vision Engines(EVEs) supported through an optimized TIDL machine learning OpenCL API with pre-installed tools. The BeagleBone AI also has an additional dual-core PowerVR SGX544 3D GPU and a Vivante GC320 2D graphics accelerator. Focused on everyday automation in industrial, commercial and home applications.

BeagleBone AI comes in a similar form-fact as BeagleBone Black and compatible with many BeagleBone Cape add-on boards make it easy to extend the functionality.

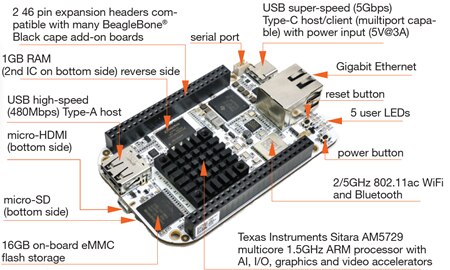

Processors and RAM

Dual 1.5GHz ARM Cortex-A15 with out-of-order speculative issue 3-way superscalar execution pipeline for the fastest execution of existing 32-bit code
2 C66x Floating-Point VLIW DSP supported by OpenCL
4 Embedded Vision Engines (EVEs) supported by TIDL machine learning library
2x Dual-Core Programmable Real-Time Unit (PRU) subsystems (4 PRUs total) for ultra low-latency control and software generated peripherals

Memory: 1GB RAM and 16GB on-board eMMC Flash

Connectivity

Gigabit Ethernet
802.11ac 2.4/5GHz WiFi via the AzureWave AW-CM256SM
Bluetooth 4.2 and Bluetooth Low Energy via the AzureWave AW-CM256SM

USB Type-C for power and superspeed dual-role controller
USB type-A host

Audio and Video

IVA-HD subsystem with support for 4K @ 15fps H.264 encode/decode and other codecs @ 1080p60
Vivante GC320 2D graphics accelerator
Dual-Core PowerVR SGX544 3D GPU

Additional Features and Connectivity

2x46 expansion headers compatible with many BeagleBone cape add-on boards
- 16-bit LCD interfaces
- 4+ UARTs
- 2x I2C ports
- 2x SPI ports
- Lots of PRU I/O pins
Zero-download out of box software environment
Self-hosted web IDE with local compilers, libraries and examples
Debian distribution (initially version 9.9, 10.0 available)
Linux kernel support (initially 4.14, with 4.19 and 5.2 available)
Connectivity via USB gadget (network/serial), WiFi access point and station, Ethernet, and serial debug header
