Kit Overview

The Embest's AT91SAM3U-SKAT91SAM3U-SK is the low cost development kit for ATSAM3UATSAM3U (96MHz, the ARM Cortex-M3 processor built-in High Speed USB controller), including the ATSAM3U evaluation board(AT3U) and Emlink for ARM(EAH1) JTAG adapter, so the developers can easy start to learn and test all the relevant applications on it, or evaluate your new project design through this entire system.

Atmel AT91SAM3U-SKAT91SAM3U-SK Starter Kit contains all the necessary hardware and software and allows you to design, develop, integrate and test your applications:

Atmel ATSAM3U ARM Cortex-M3 Board
Keil MDK-ARM Development Kit, 32K evaluation edition
Emlink for ARM - a high speed JTAG Emulator for ARM Cortex-M3 processors
Plenty of example programs, all in source code

The Atmel ATSAM3UATSAM3U is the industry’s first ARM Cortex M3 Flash microcontroller with on-chip high speed USB Device-and-Transceiver, SDIO/SDCard/MMC and SPI interfaces. This connectivity, together with the SAM3U’s 96 MHz/1.25 DMIPS/MHz operating frequency.

Ordering Information:

MPN	Description
AT91SAM3U-SKAT91SAM3U-SK	One AT91SAM3U ARM Cortex-M3 Board+One Emlink for ARM
EM-AT91SAM3UEM-AT91SAM3U	ATMEL SAM3U ARM Cortex-M3 Board Only

Key Applications: Industrial high speed gateways, medical, data processing and consumer applications

More Development Kits and Tools
	Atmel Development Kits		More ARM Development Kits
	Development Platforms & Kits		element14 Knode

Development Tools

Software Development Tools:

Tool Type	Supplier	Supported Family	MPN	Description
IDE	Atmel	ARM Cortex-M	Atmel Studio 6 IDE	Atmel Studio 6 Integrated Development Environment (IDE) is the integrated development environment (IDE) for developing and debugging Atmel ARM Cortex-M and Atmel AVR microcontroller (MCU) based applications. The Atmel Studio 6 IDE gives you a seamless and easy-to-use environment to write, build and debug your applications written in C/C++ or assembly code. Learn More
IDE	ARM	ALL ARM Cortex	KEIL MDK ARM	The MDK-ARM (Microcontroller Development Kit) is the complete software development environment for ARM7, ARM9, Cortex-M, and Cortex-R4 processor-based devices. Learn More
IDE	Embest	ARM Cortex M0 & M3	CoIDE	CooCox offer freely available powerful software development tool for ARM Cortex-M3 & Cortex-M0 based microcontrollers. Coocox Tools organizes and provides the knowledge required by developers. Learn More
RTOS	Embest	ARM Cortex M0 & M3	CoOS	CoOS is a free and open RTOS from CooCox, designed specifically for Cortex-M processor, supports preemptive priority and round-robin, Semaphore, Mutex, Flag, Mailbox and Queue for communication & synchronization, highly scalable, minimum system kernel is only 974Bytes, supports interrupt while task switching, supports stack overflow detection, supports the platforms of ICCARM, ARMCC, GCC. Learn More
RTOS	Micrium	ARM7 / AMR9	Micrium uc/OSIII	μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and next embedded sytem projects. Learn More
RTOS	ARM KEIL	ALL ARM	KEIL RTX	The Keil RTX is a royalty-free, deterministic Real-Time Operating System designed for microcontrollers based on ARM7TDMI, ARM9, and Cortex-M CPU cores. Learn More
RTOS	Segger	ALL ARM	embOS	SEGGER embOS (Real Time Operating System) follows strict, yet efficient coding and documentation standards. embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications. Learn More

Hardware Development Tools:

Tool Type	Supplier	Supported Family	MPN	Description
Debuggers, Emulators & JTAG Tools	Atmel	ARM	AT91SAM-ICEAT91SAM-ICE	USB JTAG In-Circuit Emulator for SAM3, SAM7 and SAM9 ARM-based microcontrollers
Debuggers, Emulators & JTAG Tools	ARM	ALL ARM	DSTRM-KT-0181ADSTRM-KT-0181A	DSTREAM Debug and Trace Unit
Debuggers, Emulators & JTAG Tools	ARM	ALL ARM	ULINK2ULINK2	USB Debugger
Debuggers, Emulators & JTAG Tools	ARM	ALL ARM	ULINKProULINKPro	High-Speed Debug and Trace Unit
Debuggers, Emulators & JTAG Tools	Segger	ARM / CORTEX-M/A/R	J-LinkJ-Link	USB JTAG Emulator
Debuggers, Emulators & JTAG Tools	Segger	ALL ARM Cortex-M	J-Trace for Cortex-MJ-Trace for Cortex-M	USB JTAG Emulator
Debuggers, Emulators & JTAG Tools	Segger	ALL ARM	J-Trace for ARMJ-Trace for ARM	USB JTAG Emulator
Flasher	Segger	ALL ARM	Flasher ARMFlasher ARM	ARM & Cortex M Flash Programmer

Technical Documents

Learning Center

Type	Description
User Manual	Embest: User Manual for AT91SAM3U ARM-CM3 Board
Datasheet	Embest: Datasheet for AT91ARM M3 Cortex-based Processor
Application Note	Atmel: Application Note for Analog-to-Digital Converter in the SAM3S4
Application Note	Atmel: Application Note for AT91SAM Update for EWARM
Application Note	Atmel: Application Note for Interfacing a 4x4 Keyboard to an AT91 Microcontroller

Design Elements

Type	Description
Schematics	Embest: Schematics File for EM-AT91SAM3U Eval Board AT91SAM3U Starter Kit
Layout	Embest: Layout File for EM-AT91SAM3U Eval Board
Application Library	Atmel: Software Code for AT91SAM Update for EWARM

Video

Video 1	Video 2
You don't have permission to edit metadata of this video. Edit media Dimensions x Subject (required) Brief Description Tags (separated by comma) Video visibility in search results Parent content Poster Upload Preview	This video is unavailable. You don't have permission to edit metadata of this video.

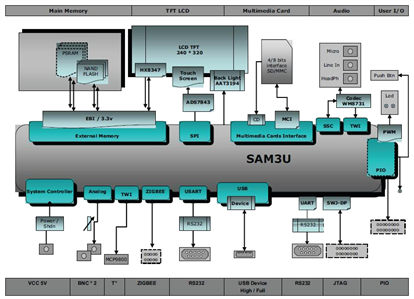

Kit Features

Atmel ATSAM3U ARM Cortex-M3 Board:
- One ATSAM3U Board plus one 2.8" TFT LCD
- ATSAM3U4EATSAM3U4E LQFP 144 Pins, ARM Cortex-M3 based, 96MHz
- XTAL Frequency: 12 MHz
- 256KB flash memory and 48KB SRAM
- Two RS232 Interfaces
- One High-speed USB Device Interface
- One 2.8" TFT LCD interface
- One MicroSD Card interface
- One 20pins JTAG Interface,
- Four Push Buttons (Reset, Wake Up, Tampering, User)
- Two BNC Interfaces
- One RTC Unit with Battery
- One Analog Input (connected to potentiometer),
- One Analog Output (connected to speaker by default)
- Supply Voltage: 5 Volts DC (provided by power adapter)
- Board Size: 135mm x 90mm (5.3" x 3.5")

Keil MDK-ARM Development Kit
- µVision IDE, debugger and simulation environment
- ARM industry-leading C/C++ compiler from ARM
- MicroLib highly optimized run-time library
- Real-Time Trace for Cortex-M3 processor based devices
- Keil RTX - deterministic Real-Time Operating System

Emlink for ARM
- Supports debugging with Realview MDK and EWARM
- Supports ARM Cortex-M3 processors: STM32, LPC17XX, AT91SAM3UE, etc.
- JTAG 20 pins connects to target
- Supports hardware and software breakpoints
- Supports USB port connecting to host PC
- Downloads and debugs speed up to 250KBytes/s (about 1.5Mbps)
- Integrates seamlessly into IAR Embedded Workbench and Keil RealView MDK

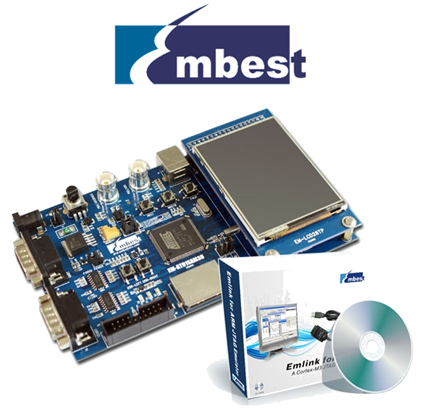

Kit Contents

The Embest AT91SAM3U-SKAT91SAM3U-SK Starter Kit is supplied with the below contents:

Atmel ATSAM3U ARMCortex-M3 Board
- One AT91SAM3U ARM Cortex-M3 Board
- One RS-232 Serial Cable
- One USB Cable
- One 2.4" TFT LCD Panel (240 x 320)
One Emlink for ARM

Optional

CDROM of Atmel AT91SAM3U-SKAT91SAM3U-SK Starter Kit (free)
- Documents - user manual, data sheets and the other development documents.
- Images - image files for this product.
- Software - software programs for this product.
- Tools - the utilities tools and software
