Freescale: MCF548x Fire Engine Module

Buy NowBuy NowDevelopment ToolsTechnical DocumentsVideoFeaturesKit Contents


Kit Overview

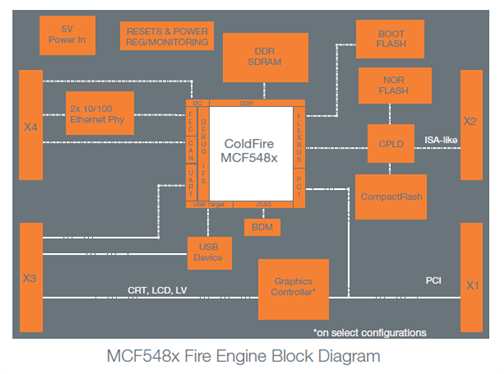

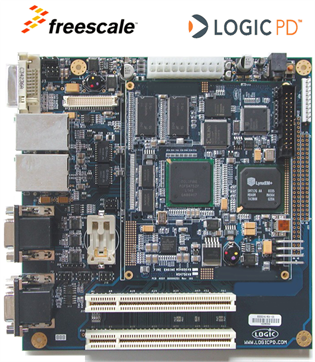

The MCF548x Fire Engine Module is a compact system-on-module, product-ready hardware and software solution that fast forwards your embedded product design.The kit contains a system-on-module, called a Fire Engine, containing  64 MBytes of DDR-SDRAM, 16 MB of Flash, and a graphics contoller.  The Fire Engine module, along with the included ethernet ports, PCI slots, CAN interfaces, serial interfaces, and the best-in-class ColdFire debug module generates a complete package to enable quick design support MCF548x processors.



The ColdFire MCF5485MCF5485 processors are ideally suited for embedded industrial applications requiring simultaneous control, connectivity, and security. The Fire Engine modules based on these processors are complete System on Modules (SOMs) offerring essential features for embedded applications. Using a SOM allows engineers to design a custom baseboard that meets their specific needs and is compatible with other Logic SOMs. This compatibility makes it easy for developers to upgrade their product for greater functionality and performance while still using their original baseboard design.



The MCF5485MCF5485 ColdFire processors from Freescale Semiconductor provide a broad range of peripheral support, making them ideal processors for industrial and embedded applications.Designing a product around Logic’s SOM allows developers to easily combine their core technologies with the high performance of the MCF5485 ColdFire processor.



Ordering Information:


The MCF548x Fire Engine is available in two varients, with/without flash memory:



Order Code
Description
M5485AFEEM5485AFEE

MCF5485 MCU, 64MB DDR SDRAM, 2MB Boot Flash, USB Device, Ethernet,

Industrial Temperature (-40°C TO +85°C)

M5485BFEEM5485BFEE
MCF5485, 64MB DDR SDRAM, 16MB NOR Flash, 2MB boot flash, USB device, Ethernet, Industrial Temperature (-40°C TO +85°C)



Key Applications: Industrial (Mobile Robot (Battery Operated), Electronic Point-of-Sales (ePOS) Terminals, Security Systems)

More Development Kits and Tools
imageFreescale Development KitsimageFreescale Development Tools
imageDevelopment Platforms & Kitsimageelement14 Knode



Development Tools




Software Development Tools:



Tool TypeSupplierMPNSupported FamilyDescription
IDEFreescaleCodeWarriorAll Freescale MCU's

Freescale's software and development solutions take you beyond the silicon, helping to bring your embedded applications to life.  Learn More


RTOSFreescaleMQXColdFire / HC08 / HC12 / ARM / S08 / RS08 / PowerPC

The Freescale MQX Real-Time Operating System (RTOS) provides real-time performance within a small, configurable footprint. This RTOS is designed to allow you to configure and balance code size with performance requirements. Learn More


RTOSMicriumuC/OS IIIColdFire / HC08 / HC12 / ARM / S08 / RS08 / PowerPC

μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and next embedded sytem projects. Using a commercial real-time kernel such as μC/OS-III provides a solid foundation and framework to the design engineer dealing with the growing complexity of embedded designs.  Learn More


RTOSSeggerembOSColdFire / HC08 / HC12 / ARM / S08 / RS08

SEGGER embOS (Real Time Operating System) follows strict, yet efficient coding and documentation standards. embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications.  Learn More






Hardware Development Tools:



Tool TypeSupplierMPNSupported FamilyDescription
Debuggers, Emulators & JTAG ToolsFreescaleU-MULTILINKU-MULTILINKHC08 / HCS12 / S08 / RS08 / Coldfire / KinetisP&E USB Multilink Universal debug and programming interface for HCS08, HC(S)12(X), ColdFire, Qorivva MPC55xx/56xx, and Kinetis
Debuggers, Emulators & JTAG ToolsFreescaleUSBMLCFUSBMLCFColdfire V2/V3/V4USB BDM Interface cable for the ColdFire V2/V3/V4
