Arduino: Arduino Mega Android™︎ Development Kit based on Atmel AVR ATMega 2560 MCU

Buy NowBuy Now

Kit Overview

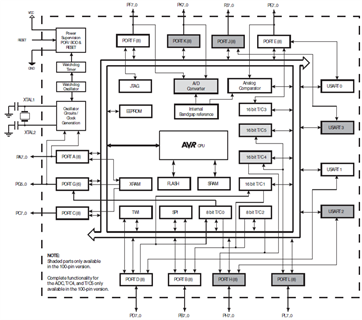

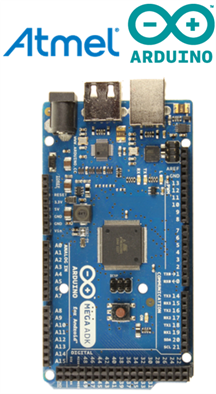

The Arduino ADK is a microcontroller board based on the ATmega2560ATmega2560. It has a USB host interface to connect with Android based phones, based on the MAX3421eMAX3421e IC. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.

The ADK is based on the Mega 2560. Similar to the Mega 2560 and Uno, it features an ATmega8U2ATmega8U2 programmed as a USB-to-serial converter. Revision 2 of the MegaADK board has a resistor pulling the 8U2 HWB line to ground, making it easier to put into DFU mode.

Arduino Mega Android Development Kit (A000069A000069) is the third revision of the Arduino Mega ADK (A000063). It has the following new features:

1.0 pinout: added SDA and SCL pins that are near to the AREF pin and two other new pins placed near to the RESET pin, the IOREF that allow the shields to adapt to the voltage provided from the board. In future, shields will be compatible both with the board that use the AVR, which operate with 5V and with the Arduino Due that operate with 3.3V. The second one is a not connected pin, that is reserved for future purposes.
Stronger RESET circuit.

More Development Kits and Tools
	Atmel Development Kits		Atmel Overview
	Development Platforms & Kits		element14 Knode

Development Tools

Software Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
IDE	Atmel	Atmel Studio 6	ALL AVR	Atmel Studio 6 Integrated Development Environment (IDE) is the integrated development environment (IDE) for developing and debugging Atmel ARM Cortex-M and Atmel AVR microcontroller (MCU) based applications. The Atmel Studio 6 IDE gives you a seamless and easy-to-use environment to write, build and debug your applications written in C/C++ or assembly code. Learn More

Tool Type

Supplier

MPN

Supported Family

Description

IDE

Atmel

Atmel Studio 6

ALL AVR

Atmel Studio 6 Integrated Development Environment (IDE) is the integrated development environment (IDE) for developing and debugging Atmel ARM Cortex-M and Atmel AVR microcontroller (MCU) based applications. The Atmel Studio 6 IDE gives you a seamless and easy-to-use environment to write, build and debug your applications written in C/C++ or assembly code. Learn More

Hardware Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
Debuggers, Emulators & JTAG Tools	Atmel	ATAVRDRAGONATAVRDRAGON	AVR UC3 / AVR XMEGA / megaAVR / tinyAVR	AVR Dragon JTAG Debugger Starter Kit for for 8-bit and 32-bit AVR devices
Debuggers, Emulators & JTAG Tools	Atmel	ATAVRONEKITATAVRONEKIT	AVR UC3 / AVR XMEGA / megaAVR / tinyAVR	AVR ONE! professional development tool for all Atmel 8-bit and 32-bit AVR devices
Debuggers, Emulators & JTAG Tools	Atmel	ATJTAGICE2ATJTAGICE2	AVR UC3 / AVR XMEGA / megaAVR / tinyAVR	AVR JTAGICE mkII mid-range development tool for Atmel 8-bit and 32-bit AVR devices
Debuggers, Emulators & JTAG Tools	Atmel	ATAVRISP2ATAVRISP2	AVR XMEGA / megaAVR / tinyAVR	AVRISP mkII Programmer for field upgrades of Atmel 8-bit AVR microcontrollers with ISP or PDI interfaces

Technical Documents

Learning Center

Type	Description
Datasheet	Atmel: ATmega640/1280/1281/2560/2561 Datasheet (Complete)
Application Note	Atmel: Best Practices for the PCB layout of Oscillators
Application Note	Atmel: Low-Jitter Multi-Channel SoftwarePWM
Application Note	Atmel: USB Host Android Accessory
Application Note	Atmel:Software Emulation of TWI Slave Hardware Module
Application Note	Atmel: Android Accessory Demo

Design Elements

Type	Description
Schematics	Arduino: Ethernet Schematic
Reference Design	Arduino: Ethernet Reference Design
Code Snippet	Arduino: Sample Code for Stepper Library
Code Snippet	Arduino: Sample Code for LiquidCrystal - "Hello World!"
