Embest: Evaluation Boards based on NXP LPC17xx MCU Series

Buy NowBuy Now

Kit Overview

EM-LPC1700 evaluation board is the latest generation of full function evaluation board produced by Embest for NXP ARM Cortex-M3 core-based processors. The board features comprehensive interfaces, which not only provides a good platform for application development, but also is the first choice for learners. Combining with the debugging tools ULINK2ULINK2, it will offer you a better development environment for saving time and improving efficiency.

The LPC17xx are ARM Cortex-M3 based microcontrollers for embedded applications featuring a high level of integration and low power consumption. The ARM Cortex-M3 is a next generation core that offers system enhancements such as enhanced debug features and a higher level of support block integration. The LPC176x operate at CPU frequencies of up to 100 MHz. The LPC1769LPC1769 operates at CPU frequencies of up to 120 MHz. The ARM Cortex-M3 CPU incorporates a 3-stage pipeline and uses a Harvard architecture with separate local instruction and data buses as well as a third bus for peripherals. The ARM Cortex-M3 CPU also includes an internal prefetch unit that supports speculative branching.

Ordering Information:

The EM-LPC1700 Evaluation Board is available in differet variants: the LPC1758FBD80,551LPC1758FBD80,551, LPC1766 and LPC1768. The supplied microcontroller is the only difference between these three boards.

MPN	Description
EM-LPC1700-58EM-LPC1700-58	Evaluation Board based on NXP LPC1758LPC1758 microcontroller, 512KB Flash memory, 80 pins, 100MHz.
EM-LPC1700-66EM-LPC1700-66	Evaluation Board based on NXP LPC1766LPC1766 microcontroller, 256KB Flash memory, 100 pins, 100MHz.
EM-LPC1700-68EM-LPC1700-68	Evaluation Board based on NXP LPC1768LPC1768 microcontroller, 512KB Flash memory, 100 pins, 100MHz.
LPC1766-SKLPC1766-SK	Evaluation Board based on NXP LPC1766LPC1766 microcontroller + MDK ARM + Emlink JTAG
LPC1768-SKLPC1768-SK	Evaluation Board based on NXP LPC1768LPC1768 microcontroller + MDK ARM + Emlink JTAG

Key Applications: eMetering, Alarm systems, Lighting, White goods, Industrial networking, and Motor control.

More Development Kits and Tools
	Other Embest Development Kits		Other NXP Development Kits
	Development Platforms & Kits		element14 Knode

Development Tools

Software Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
IDE	Embest CooCox	CoIDE	ARM Cortex M0 & M3	CooCox offer freely available powerful software development tool for ARM Cortex-M3 & Cortex-M0 based microcontrollers. Coocox Tools organizes and provides the knowledge required by developers. Learn More
IDE	ARM	Keil MDK-ARM	ARM Cortex-M / Cortex-R4 / ARM7 / ARM9	The MDK-ARM is a complete software development environment for Cortex-M, Cortex-R4, ARM7 and ARM9 processor-based devices. MDK-ARM is specifically designed for microcontroller applications, it is easy to learn and use, yet powerful enough for the most demanding embedded applications. Learn More
RTOS	Micrium	µC/OS-II	LPC17xx	µC/OS-II, the Real-Time Kernel, is a portable, ROMable, scalable, preemptive, real-time deterministic multitasking kernel for microprocessors, microcontrollers and DSPs. Offering unprecedented ease-of-use, µC/OS-II is delivered with complete source code and in-depth documentation. Learn More
RTOS	Micrium	µC/OS-III	LPC17xx	μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and next embedded sytem projects. Using a commercial real-time kernel such as μC/OS-III provides a solid foundation and framework to the design engineer dealing with the growing complexity of embedded designs. Learn More

Hardware Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
Debugger	Embest	ColinkExColinkEx	ARM Cortex-M	ARM Cortex-M MCU JTAG Hardware Debugging Probe which supports in CooCox software and Keil Realview MDK
Emulator / Debugger / Programmer	ARM	ULINK2ULINK2	ARM Cortex-M / ARM7 / ARM9	ULINK2 Debug Adapter
Emulator / Debugger / Programmer	ARM	ULINKProULINKPro	ARM Cortex-M / ARM7 / ARM9	ULINKpro Debug and Trace Unit
Emulator	Segger	J-LinkJ-Link	ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9	JTAG/SWD Emulator with USB interface
Programmer	Segger	Flasher ARMFlasher ARM	ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9	Flash Programmer for ARM and Cortex cores

Technical Documents

Learning Center

Type	Description
User Manual	NXP: LPC17xx User manual (v.2.0)
User Manual	NXP: POS Reference Design
Product Brief	NXP: Cortex-M microcontroller brochure
Product Brief	NXP: Low-cost development platform
Product Brief	NXP: Industrial PC Application Reference Document
Datasheet	NXP: LPC1769_68_67_66_65_64_63 datasheet
Application Note	NXP: PCB layout guidelines for NXP MCUs
Application Note	NXP: AN10918 - IEC60335 Class B library

Design Elements

Type	Description
Reference Design	NXP: Ethernet throughput
Reference Design	NXP: In-Application Programming
Reference Design	NXP: Accessing SDC/MMC card using SPI/SSP
Reference Design	NXP: Capacitive touch sensing
Reference Design	NXP: Using Speex in NXP's LPC175x/6x MCU family

Video

Video 1	Video 2
This video is unavailable. You don't have permission to edit metadata of this video.	You don't have permission to edit metadata of this video. Edit media Dimensions x Subject (required) Brief Description Tags (separated by comma) Video visibility in search results Parent content Poster Upload Preview

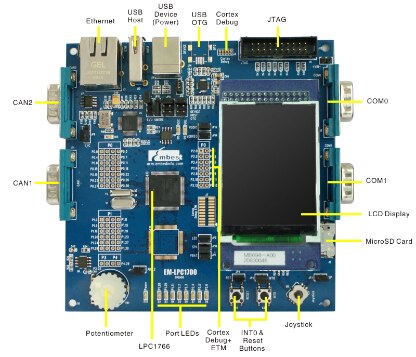

Kit Features

Processors: NXP LPC1768FBD100,551LPC1768FBD100,551, the frequency up to 100MHz
Internal Memory: up to 512KB flash memory, 64KB SRAM
2 RS232 Interfaces
2 CAN Interfaces
1 Ethernet Interface
1 JTAG Interface
1 ETM Interface
2 Cortex Debug Interfaces
1 LCD Display
1 USB Device/Host/OTG Interface
1 Analog Output (connected to speaker by default)
1 Analog Input (connected to potentiometer by default)
RTC (with back-up battery)
1 Mini SD Card Interface

Kit Contents

One EM-LPC1700 board
2.4 inches TFT LCD (240*320)
One Cross-serial line
One USB A-B cable
One Crossover network cable
One EM-LPC1700 CD
