NXP: Keil MCB1800 Evaluation Kits

Buy NowBuy Now

Kit Overview

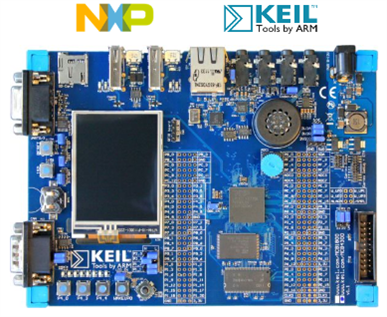

The Keil MCB1800 Evaluation Boards enable you to create and test working programs based on the NXP LPC1850 family of ARM Cortex-M3 processor-based devices. The MCB1800 boards contain all the hardware components required in a single-chip LPC device-based system. The MCB1800 Evaluation Board and Starter Kit also includes the MDK-ARM Lite Edition Tools. These tools help you get started writing programs and testing the microcontroller and its capabilities. Sample applications that run on the MCB1800 evaluation board, and a Quickstart guide are included.

The MCB1800 Evaluation Board ships with the LPC185xLPC185x device that is a superset of several other device variants of the LPC18xx microcontroller series. The LPC185xis a high-performance, cost-effective Cortex-M3 microcontroller featuring up to200 kB of SRAM, and advanced peripherals including Ethernet, High Speed USB 2.0 Host/OTG/Device, LCD controller, and CAN 2.0B. Operating at speeds up to 180 MHz, the LPC185x also features two new configurable peripherals: a SPI Flash Interface and a State Configurable Timer. All members of the series include a Wakeup Interrupt Controller allowing automatic wake from any priority interrupt as well as four reduced power modes: Sleep, Deep-Sleep, Power-Down, and Deep Power-Down.

Ordering Information:

The MCB1800 is available as a stand alone evaluation board or as a starter kit which includes the ULINK-ME debug adapter.

Part Number	Description
MCB1850MCB1850	MCB1850 evaluation board, populated with a NXP LPC1850LPC1850 device.
MCB1850UMEMCB1850UME	MCB1850 starter kit with ULINK-ME.
MCB1857MCB1857	MCB1857 evaluation board, populated with a NXP LPC1857LPC1857 device.
MCB1857UMEMCB1857UME	MCB1857 evaluation board with with ULINK-ME.

Key Applications: Industrial, RFID readers, Consumer, e-Metering, White goods, etc.

More Development Kits and Tools
	Other NXP Development Kits		NXP Overview
	Development Platforms & Kits		element14 Knode

Development Tools

Software Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
IDE	ARM	Keil MDK-ARM	ARM Cortex-M / Cortex-R4 / ARM7 / ARM9	The MDK-ARM is a complete software development environment for Cortex-M, Cortex-R4, ARM7 and ARM9 processor-based devices. MDK-ARM is specifically designed for microcontroller applications, it is easy to learn and use, yet powerful enough for the most demanding embedded applications. Learn More
RTOS	Micrium	µC/OS-II	LPC17xx	µC/OS-II, the Real-Time Kernel, is a portable, ROMable, scalable, preemptive, real-time deterministic multitasking kernel for microprocessors, microcontrollers and DSPs. Offering unprecedented ease-of-use, µC/OS-II is delivered with complete source code and in-depth documentation. Learn More
RTOS	Micrium	µC/OS-III	LPC17xx	μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and next embedded sytem projects. Using a commercial real-time kernel such as μC/OS-III provides a solid foundation and framework to the design engineer dealing with the growing complexity of embedded designs. Learn More

Hardware Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
Emulator / Debugger / Programmer	ARM	ULINK2ULINK2	ARM Cortex-M / ARM7 / ARM9	ULINK2 Debug Adapter
Emulator / Debugger / Programmer	ARM	ULINKProULINKPro	ARM Cortex-M / ARM7 / ARM9	ULINKpro Debug and Trace Unit
Emulator	Segger	J-LinkJ-Link	ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9	JTAG/SWD Emulator with USB interface
Programmer	Segger	Flasher ARMFlasher ARM	ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9	Flash Programmer for ARM and Cortex cores

Technical Documents

Learning Center

Type	Description
User Manual	NXP: LPC18xx ARM Cortex-M3 microcontroller
Datasheet	NXP: LPC1857 Data Sheet
Product Brief	NXP: Cortex-M microcontroller brochure
Product Brief	NXP: Industrial PC Application Reference Document
Application Note	NXP: PCB layout guidelines for NXP MCUs
Application Note	NXP: UUencoding for UART ISP

Design Elements

Type	Description
Schematic	ARM: MCB1800 Evaluation Board Schematics
Reference Design	NXP: NXP's basic graphics library
Reference Design	NXP: Using SPIFI on LPC1800 and LPC4300

Video

Video 1	Video 2
You don't have permission to edit metadata of this video. Edit media Dimensions x Subject (required) Brief Description Tags (separated by comma) Video visibility in search results Parent content Poster Upload Preview	You don't have permission to edit metadata of this video. Edit media Dimensions x Subject (required) Brief Description Tags (separated by comma) Video visibility in search results Parent content Poster Upload Preview

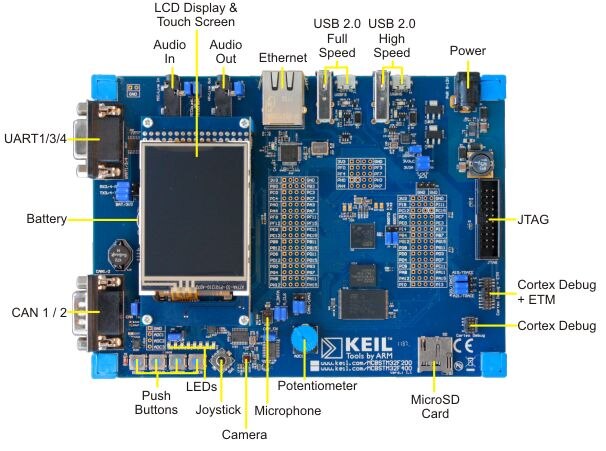

Kit Features

180MHz ARM Cortex-M3 processor-based MCU in LBGA256
On-Chip SRAM: 136KB (LPC1857LPC1857), 200KB (LPC1850LPC1850)
On-Chip Flash: 1MB dual bank (LPC1857LPC1857), no on-chip Flash (LPC1850LPC1850)
On-Board Memory: 16MB NOR Flash, 4MB Quad-SPI Flash, 16 MB SDRAM, & 16KB EEPROM (I2C)
Color QVGA TFT LCD with touchscreen
10/100 Ethernet Port
High-speed USB 2.0 Host/Device/OTG interface (USB host + Micro USB Device/OTG connectors)
Full-speed USB 2.0 Host/Device interface (USB host + micro USB Device connectors)
CAN interfaces
Serial/UART Port
MicroSD Card Interface
4 user push-buttons + reset
Digital Temperature Sensor (I2C)
Analog Voltage Control for ACD Input
Audio CODEC with Line-In/Out and Microphone/headphone connector + Speaker
Debug Interface Connectors
- 20-pin JTAG (0.1 inch)
- 10-pin Cortex debug (0.05 inch)
- 20-pin Cortex debug + ETM Trace (0.05 inch)Development Software

Kit Contents

The MCB1800 Evaluation Board.
2 USB A to Micro-B cables.
A µVision IDE Quick Start Guide.
Example Programs for the MCB1800 Evaluation Board are located in the folder KEIL\ARM\BOARDS\KEIL\MCB1800.
- All examples can be compiled and debugged using the Lite Edition.
