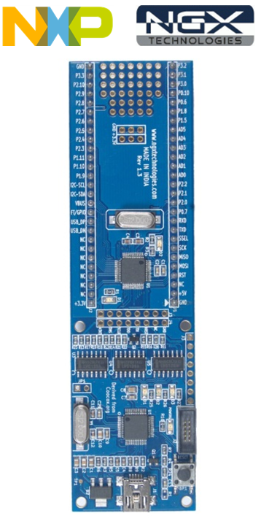

The NGX LPC11U14 Evaluation Board (OM13021OM13021) allows you to quickly and easily evaluate the NXP LPC11U1x family of microcontrollers. The microcontroller, board, and accompanying features make it a great starting point for your next Cortex-M0 project. The NGX LPC11U14 Evaluation can also be used together with the mbed-Xpresso BaseBoard. The mbed-Xpresso BaseBoard makes it possible for you to get started with experiments and prototyping immediately. The LPC11U14 evaluation board is populated with the LPC11U14LPC11U14 to demonstrate LPC11U1x features, the LPC11U14 board allows the evaluation of the robust USB performance of the LPC11U14. The LPC11U14 is developed with a highly flexible USB architecture featuring simplicity and diversity of design for a wide range of USB solutions.
The LPC11U1x are an ARM Cortex-M0 based, low-cost 32-bit MCU family, designed for 8/16-bit microcontroller applications, offering performance, low power, simple instruction set and memory addressing together with reduced code size compared to existing 8/16-bit architectures. The LPC11U1x operate at CPU frequencies of up to 50 MHz.
Equipped with a highly flexible and configurable Full Speed USB 2.0 device controller, the LPC11U1x brings unparalleled design flexibility and seamless integration to today’s demanding connectivity solutions.

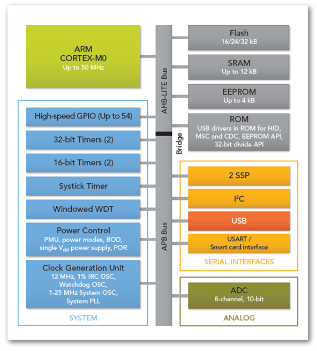

The peripheral complement of the LPC11U1x includes up to 32 kB of flash memory, 6 kB of SRAM data memory, one Fast-mode Plus I2C-bus interface, one RS-485/EIA-485 USART with support for synchronous mode and smart card interface, two SSP interfaces, four general purpose counter/timers, a 10-bit ADC, and up to 40 general purpose I/O pins.
Key Applications: Consumer peripherals, Handheld scanners, Medical, USB audio devices, Industrial control | |||||||||||
| ||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | ARM | Keil MDK-ARM | ARM Cortex -M / Cortex-R4 / ARM7 / ARM9 | The MDK-ARM is a complete software development environment for Cortex-M, Cortex-R4, ARM7 and ARM9 processor-based devices. MDK-ARM is specifically designed for microcontroller applications, it is easy to learn and use, yet powerful enough for the most demanding embedded applications. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Emulator / Debugger / Programmer | ARM | ULINK2ULINK2 | ARM Cortex-M / ARM7 / ARM9 | ULINK2 Debug Adapter |
| Emulator / Debugger / Programmer | ARM | ULINKProULINKPro | ARM Cortex-M / ARM7 / ARM9 | ULINKpro Debug and Trace Unit |
| Emulator | Segger | J-LinkJ-Link | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | JTAG/SWD Emulator with USB interface |
| Programmer | Segger | Flasher ARMFlasher ARM | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | Flash Programmer for ARM and Cortex cores |
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
| Schematics | NXP: Schematic File for NGX_LPC11U14 |
| Application Library | NXP: Software Code for NGX_LPC11U14_Eval_Board_SampleCode |
| Application Library | NXP: Software Code for USB composite device on LPC11Uxx |
Video
Kit Features
The Key Features for the OM13021OM13021 NGX LPC11U14LPC11U14 Evaluation Board are as below:
- Dimensions: 126x35 mm2
- Two layer PCB (FR-4 material)
- On-board Test Led
- 12MHz crystal
- On board debugger
- No power supply required, powered through USB
Kit Contents
The NXP OM13021OM13021 NGX LPC11U14LPC11U14 Evaluation Board supplied with below contents:
- NGX LPC11U14 Evaluation Board
