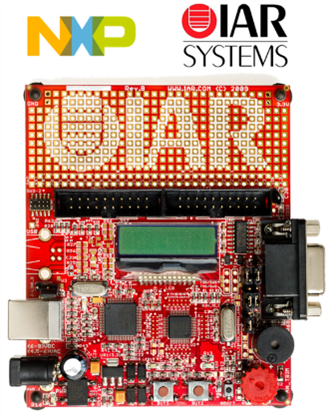

The IAR LPC1114FBD48/301,1LPC1114FBD48/301,1 Evaluation Board (OM11085,598OM11085,598) allows you to quickly and easily evaluate the NXP LPC111x family of microcontrollers. The microcontroller, board, and accompanying features make it a great starting point for your next Cortex-M0 project.
The evaluation board is populated with the LPC1114LPC1114 to demonstrate LPC111x features, the LPC1114FBD48/301,1LPC1114FBD48/301,1 board allows the evaluation of the industry's lowest 32-bit active power consumption of the LPC1114. The LPC1114LPC1114 is designed for 8/16-bit microcontroller applications, offering performance, low power, simple instruction set and memory addressing together with reduced code size compared to existing 8/16-bit architectures.
The LPC1114LPC1114 is a ARM Cortex-M0 based, low-cost 32-bit MCU family, designed for 8/16-bit microcontroller applications, offering performance, low power, simple instruction set and memory addressing together with reduced code size compared to existing 8/16-bit architectures.The LPC1114FBD48/301,1LPC1114FBD48/301,1 operate at CPU frequencies of up to 50 MHz.

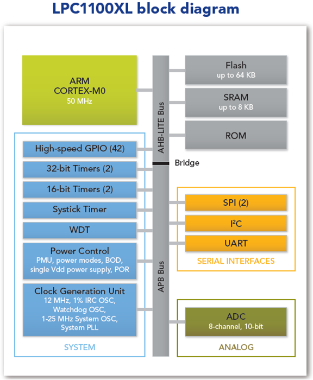

The peripheral complement of the LPC1114LPC1114 includes up to 64 kB of flash memory, up to 8 kB of data memory, one Fast-mode Plus I2C-bus interface, one RS-485/EIA-485 UART, up to two SPI interfaces with SSP features, four general purpose counter/timers, a 10-bit ADC, and up to 42 general purpose I/O pins.
Key Applications: eMetering, Lighting, Alarm systems, White goods | |||||||||||
| ||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | ARM | Keil MDK-ARM | ARM Cortex -M / Cortex-R4 / ARM7 / ARM9 | The MDK-ARM is a complete software development environment for Cortex-M, Cortex-R4, ARM7 and ARM9 processor-based devices. MDK-ARM is specifically designed for microcontroller applications, it is easy to learn and use, yet powerful enough for the most demanding embedded applications. Learn More |
| IDE | Embest | CoIDE | ARM Cortex-M | CooCox offer freely available powerful software development tool for ARM Cortex-M3 & Cortex-M0 based microcontrollers. Coocox Tools organizes and provides the knowledge required by developers. Learn More |
| RTOS | Embest | CoOS | ARM Cortex-M | CoOS is a free and open RTOS from CooCox, designed specifically for Cortex-M processor, supports preemptive priority and round-robin, Semaphore, Mutex, Flag, Mailbox and Queue for communication & synchronization, highly scalable, minimum system kernel is only 974Bytes, supports interrupt while task switching, supports stack overflow detection, supports the platforms of ICCARM, ARMCC, GCC. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Emulator / Debugger / Programmer | ARM | ULINK2ULINK2 | ARM Cortex-M / ARM7 / ARM9 | ULINK2 Debug Adapter |
| Emulator / Debugger / Programmer | ARM | ULINKProULINKPro | ARM Cortex-M / ARM7 / ARM9 | ULINKpro Debug and Trace Unit |
| Emulator | Segger | J-LinkJ-Link | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | JTAG/SWD Emulator with USB interface |
| Programmer | Segger | Flasher ARMFlasher ARM | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | Flash Programmer for ARM and Cortex cores |
| Debugger | Embest | ColinkExColinkEx | ARM Cortex-M | ARM Cortex-M MCU JTAG Hardware Debugging Probe which supports in CooCox software and Keil Realview MDK |
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
| Schematics | NXP: Schematic File for IAR_LPC1114 |
| Application Library | NXP: Software Code for Reducing code size for LPC11XX with LPCXpresso |
| Application Library | NXP: Software Code for Off-line Li-Ion battery charger solution with the LPC111x family |
Video
| Video 1 | Video 2 |
|---|---|
Kit Features
Key Features for OM11085,598OM11085,598 IAR LPC1114FBD48/301,1LPC1114FBD48/301,1 Evaluation Board are as below:
- Mounted with LPC1114LPC1114, ARM Cortex-M0
- Debug through J-Link-OB, a debug interface mounted on the board
- Standard JTAG connector (with SWD only) and small SWD connector
- Power up the board through USB, J-Link (USB cable included) or external power adapter (not included)
- Small LCD
- Two user buttons
- Reset button
- Two user LEDs
- Power LED
- Analog trim wheel
- Buzzer
- Prototyping area (approx 32 x 24 holes)
- UART routed to DB9 connector
- EXT connector
Kit Contents
The NXP OM11085,598OM11085,598 Evaluation Board is supplied with below contents:
- IAR LPC1114FBD48/301,1LPC1114FBD48/301,1 Evaluation Board
- IAR Embedded Workbench for ARM, 8K KickStart edition
- IAR visualSTATE evaluation edition, 20-state limitation
- Example projects included
