 | Kit Overview
The IAR LPC11C14FBD48/301,LPC11C14FBD48/301, Evaluation Board (OM13003,598OM13003,598) allows you to quickly and easily evaluate the NXP LPC11C1x family of microcontrollers. The microcontroller, board, and accompanying features make it a great starting point for your next Cortex-M0 project. Populated with the LPC11C14LPC11C14 to demonstrate LPC11C1x features, the LPC11C14FBD48/301,LPC11C14FBD48/301, board allows the evaluation of the low-cost CAN solution of the LPC11C14.
The LPC11C14FBD48/301,LPC11C14FBD48/301, is designed for low-cost, low-power CAN-based applications. On-chip CAN and CANopen drivers provide design engineers with easy-to-use API commands to the CANopen protocol, enabling rapid integration of the LPC11C00 series into CAN-based networks and thereby greatly simplifying the plug-and-play integration process.

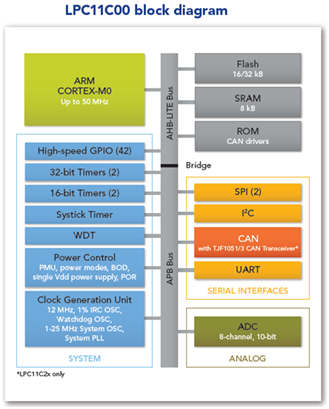

The LPC11Cx2/Cx4 are an ARM Cortex-M0 based, low-cost 32-bit MCU family, designed for 8/16-bit microcontroller applications, offering performance, low power, simple instruction set and memory addressing together with reduced code size compared to existing 8/16-bit architectures. The LPC11Cx2/Cx4 operate at CPU frequencies of up to 50 MHz.
Key Applications: eMetering, Industrial and sensor based networks, Elevator systems, White goods | |||||||||||
| ||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | ARM | Keil MDK-ARM | ARM Cortex -M / Cortex-R4 / ARM7 / ARM9 | The MDK-ARM is a complete software development environment for Cortex-M, Cortex-R4, ARM7 and ARM9 processor-based devices. MDK-ARM is specifically designed for microcontroller applications, it is easy to learn and use, yet powerful enough for the most demanding embedded applications. Learn More |
| IDE | Embest | CoIDE | ARM Cortex-M | CooCox offer freely available powerful software development tool for ARM Cortex-M3 & Cortex-M0 based microcontrollers. Coocox Tools organizes and provides the knowledge required by developers. Learn More |
| RTOS | Embest | CoOS | ARM Cortex-M | CoOS is a free and open RTOS from CooCox, designed specifically for Cortex-M processor, supports preemptive priority and round-robin, Semaphore, Mutex, Flag, Mailbox and Queue for communication & synchronization, highly scalable, minimum system kernel is only 974Bytes, supports interrupt while task switching, supports stack overflow detection, supports the platforms of ICCARM, ARMCC, GCC. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Emulator / Debugger / Programmer | ARM | ULINK2ULINK2 | ARM Cortex-M / ARM7 / ARM9 | ULINK2 Debug Adapter |
| Emulator / Debugger / Programmer | ARM | ULINKProULINKPro | ARM Cortex-M / ARM7 / ARM9 | ULINKpro Debug and Trace Unit |
| Emulator | Segger | J-LinkJ-Link | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | JTAG/SWD Emulator with USB interface |
| Programmer | Segger | Flasher ARMFlasher ARM | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | Flash Programmer for ARM and Cortex cores |
| Debugger | Embest | ColinkExColinkEx | ARM Cortex-M | ARM Cortex-M MCU JTAG Hardware Debugging Probe which supports in CooCox software and Keil Realview MDK |
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
| Schematics | NXP: Schematic File for IAR LPC11C14 Eval Board |
| Application Library | NXP: Software Code for Sensored BLDC motor control with LPC111x/LPC11Cxx |
Video
Kit Features

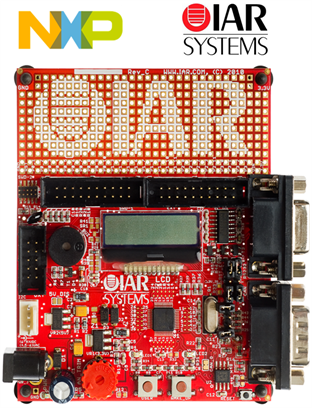

The Key Features for OM13003,598OM13003,598 IAR LPC11C14FBD48/301,LPC11C14FBD48/301, Evaluation Board are as below:
- Mounted with LPC11C14LPC11C14, ARM Cortex-M0
- IAR J-Link-Lite for ARM debug probe
- Standard JTAG connector (with SWD only) and small SWD connector
- Power up the board through J-Link (included), or an external power adapter (not included)
- Small LCD
- Two user buttons
- Reset button
- User LEDs
- Power LED
- Analog trim wheel
- CAN connector (DB9)
- Buzzer
- Temp sensor
- Prototyping area (approx 32 x 24 holes)
- UART routed to DB9 connector
- EXT connector
Kit Contents
The NXP OM13003,598OM13003,598 IAR LPC11C14FBD48/301,LPC11C14FBD48/301, Evaluation Board is supplied with below contents:
- IAR LPC11C14FBD48/301,LPC11C14FBD48/301, Evaluation Board
- IAR J-link lite for ARM
- IAR Embedded Workbench for ARM, 8K KickStart edition
- IAR visualSTATE evaluation edition, 20-state limitation
