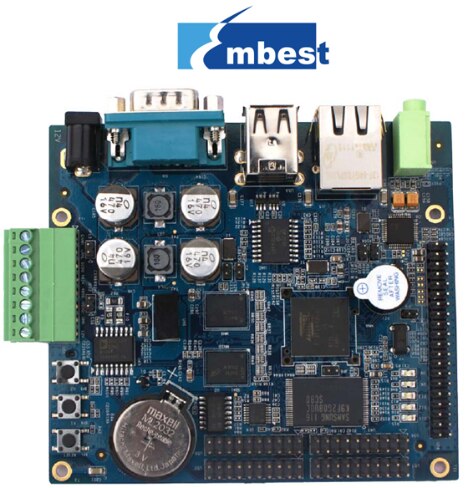

Overview: The Embest SBC6845 is a high-performance ARM embedded Single Board Computer (SBC) based on Atmel's AT91SAM9G45AT91SAM9G45 processor. It is a compact board with frequently used functions. It is designed for a wide range of applications including Industrial Control Terminal, Intelligent Instrumentation, Data Acquisition and Analysis, Medical products, and Network Terminals.
The Atmel SAM9G45 is a 400MHz ARM926 based embedded microprocessor with DDR2 and LPDDR. The board supports a wide range of connectivity and user interface peripherals, as well as a dual external bus interface. The SBC6845 extends many hardware interfaces including serial ports, USB Hosts, CAN, RS485, Ethernet, SD card, Audio out, keypad, LCD, and Touch screen. The SBC6845 also have 128MBytes DDR2 SDRAM, 256MBytes NAND Flash and 4MBytes Data Flash on board memory.
Embest also offers opptional 4.3 inch and 7 inch Touch Screen LCDs, user can connect these LCD/TSP through 2.54mm pitch 2*20-pin on board connector, with the provided LCD drivers users are ready to use this as an out of box solution. If user wants to use large size LCD with the SBC6845 board, Embest also offers one RGB-to-LVDS converter board SBC6000_LVDS as an option which can convert the LCD RGB signal to LVDS signal to create the large size LCD connection possibility.
The SBC6845 Single board computer is ready to run Linux 2.6.30 open source operating system and WinCE 6.0 operating system. Linux source code, WinCE BSP, User Manuals and development tools are also included to help the user with their own development. The board is an ideal platform for evaluation and early development work. The board also has a compact and logic layout and user can use it directly for their next embedded design which can help to shorten the time from embedded board to product release.
Ordering Information:
Key Applications: Industrial Control Terminal, Intelligent Instrumentation, Data Acquisition and Analysis, Medical, Network Terminal etc. | |||||||||||
| ||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | Atmel |
ALL ARM | Atmel Studio 6 Integrated Development Environment (IDE) is the integrated development environment (IDE) for developing and debugging Atmel ARM | |
| IDE | ARM Keil | MDK ARM | ARM Cortex -M / Cortex-R4 / ARM7 / ARM9 | The MDK-ARM (Microcontroller Development Kit) is the complete software development environment for ARM7, ARM9, Cortex-M, and Cortex-R4 processor-based devices. Learn More |
| RTOS | Micrium | ALL ARM | μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and next embedded sytem projects. Learn More | |
| RTOS | Segger | ALL ARM | SEGGER embOS (Real Time Operating System) follows strict, yet efficient coding and documentation standards. embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Debuggers, Emulators & JTAG Tools | Atmel | AT91SAM-ICEAT91SAM-ICE | SAM3 / SAM7 / SAM9 | USB JTAG In-Circuit Emulator for SAM3, SAM7 and SAM9 ARM-based microcontrollers |
| Emulator / Debugger / Programmer | ARM | ULINK2ULINK2 | ARM Cortex-M / ARM7 / ARM9 | ULINK2 Debug Adapter |
| Emulator / Debugger / Programmer | ARM | ULINKProULINKPro | ARM Cortex-M / ARM7 / ARM9 | ULINKpro Debug and Trace Unit |
| Emulator | Segger | J-LinkJ-Link | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | JTAG/SWD Emulator with USB interface |
| Programmer | Segger | Flasher ARMFlasher ARM | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | Flash Programmer for ARM and Cortex cores |
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
| Layout | Embest: Top Layer of Component Layout for SBC6845 with Board Dimension |
| Simulation Model | Atmel: IBIS Model for ARM926EJ-S based SAM9G45 |
| Software - Update | Atmel: SAM-BA In-system Programmer Tool v2.11 (for Windows) |
| CAD Model | Atmel: BSDL files for ARM926EJ-S based SAM9G45 (LFBGA217) |
Video
Kit Features

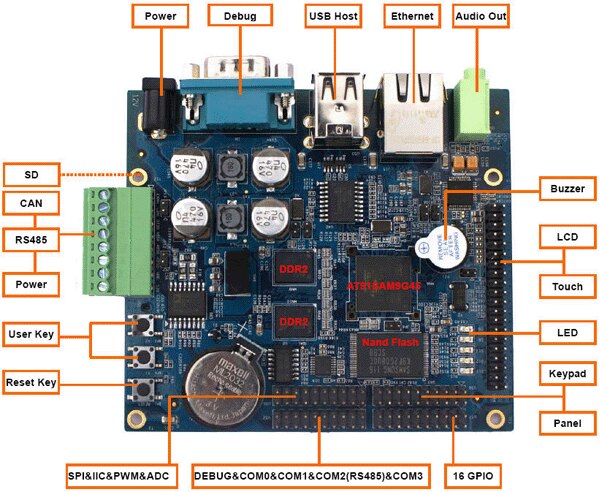

Hardware Features:
- Mechanical Parameters
- Dimensions: 106.5mm x 94mm (6-layer PCB design)
- Power Supply: +12V
- Power Consumption: +12V@0.16A (working without LCD)
- Working Temperature: -40~85°C
- Humidity Range: 0% ~ 90%
- Processor
- Atmel AT91SAM9G45AT91SAM9G45 ARM926EJ-S Core Microprocessor (compatible with AT91SAM9M10)
- 32 KBytes Data Cache, 32 KBytes Instruction Cache, MMU
- 64-kbyte internal SRAM and One 64-kbyte internal ROM
- Can work at up to 400MHz
- Memory
- 64MBytes*2 DDR2 SDRAM
- 256MBytes NAND Flash
- 4MBytes Data Flash
- Audio/Video Interfaces
- Audio output port (supports playing MP3)
- 2.54mm pitch 2*20-pin LCD interface (provide 4.3" and 7" LCD for options)
- 4-wire resistive touch screen interface
- Buzzer
- Data Transfer Interfaces
- Serial Ports
- Debug: 3-wire RS232 serial port (TTL is designable)
- COM0: 3-wire TTL serial port (RS232 is designable)
- COM1: 5-wire TTL serial port (RS232 is designable)
- COM2: 3-wire RS485 serial port with isolation (TTL is designable)
- COM3: 3-wire RS232 serial port (TTL is designable)
- CAN 2.0 interface (with power and signal isolation)
- Two High-speed USB 2.0 Host ports, 480Mbps
- 10/100Mbps Ethernet port (RJ45 with LED)
- SDHC card slot (Hot plug-and-play)
- 2.54mm pitch 2*10-pin expansion interface (SPI, I2C, PWM, ADC are led out from this connector)
- Serial Ports
- Input/Output Interfaces and Other Facilities
- 6*6 matrix keypad interface (through one 2.54mm pitch 2*10-pin connector)
- 16 GPIOs extended from CPU (through one 2.54mm pitch 2*10-pin connector)
- 3 Keys (one for Reset and two for user defined)
- Precise RTC, battery backed (user need to prepare the battery themselves, recommended Model: multiProductLinkmultiProductLinkCR2032)
- 5 LED status indicators
Software Features:
| OS | Item | Feature | Description |
| Linux | Boot | Version | u-boot 1.3.4 |
| Boot Mode | Boot from Data Flash | ||
| Download Mode | Download kernel and file system from Ethernet | ||
| Update kernel | Support programming kernel image into Data Flash and Nand Flash | ||
| Update file system | Support programming Yaffs2 file system into NandFlash | ||
| Kernel and drivers | Version | Linux 2.6.30 | |
| File system | Support ROM/CRAM/EXT2/RAMDISK/YAFFS2/FAT32 | ||
| Driver | Serial, RS485, RTC, NET, LCD, Touch Screen, Audio out, SD, USB, CAN, Keypad, LED, GPIO, Buzzer | ||
| File System | Format | yaffs2 file system, can be read and written | |
| Network protocol and applications | TCP/IP | Complete TCP/IP protocol | |
| System configuration and service | Network Ping | Ping command, used in checking system | |
Ifconfig, route, inetd | Used in network configuration and relative service program | ||
Login, telnet, echo, discard | Login and other program | ||
| Basic command | Linux command | Cat, chmod, discard, echo, flashwrite, flashfsd, free, genhtml, init, kill, loader, Ls, mkdir, mount, ps, reboot, rm, smanaged, sysconf, yes, insmod, lsmod, rmmod | |
| Graphics library | Qt/Embeded Qtopia | Already ported | |
| WinCE | Boot | Version | Eboot (Wince 6.0) |
| Boot Mode | Boot from NAND Flash | ||
| Download Mode | Download image from Ethernet or VS2005 or SAM-BA | ||
| Kernel | Version | WinCE6.0 | |
| Driver | Serial, RS485, RTC, NET, LCD, Touch Screen, Audio out, SD, USB, CAN, Keypad, LED, Buzzer, GPIO |
Kit Contents
- SBC6845 board
- Serial cable
- Ethernet cable
- USB cable
- 12V power adapter
- 4.3" OR 7" TouchScreen LCD Display (optional)
Add-on Modules
| Part Number | Description |
|---|---|
| SBC6000_LVDS | RGB-to-LVDS converter board |
SBC6845_SPI_UART | UARTs extension through SPI |
| SBC6845_USB_NET | Ethernet extension through USB |
| SBC6845_VGA | VGA module (convert LCD TTL signal to VGA signal) |
| WCDMA8000-UWCDMA8000-U | USB 3G Module (WCDMA standard) |
