 | Overview
The CY8CKIT-025CY8CKIT-025 PSoC
The kit supports temperature measurement using four temperature sensors:
The CY8CKIT-025CY8CKIT-025 EBK is designed for use with the CY8CKIT-030CY8CKIT-030 PSoC 3 Development Kit and the CY8CKIT-001CY8CKIT-001 PSoC Development Kit (all sold separately). Combining CY8CKIT-025 EBK with a development kit provides a complete single chip temperature sensing and control solution.
Cypress’s PSoC programmable system-on-chip architecture gives you the freedom to not only imagine revolutionary new products, but the capability to also get those products to market faster than anyone else. PSoC Creator is a state-of-the-art, easy-to-use IDE that introduces a game-changing hardware and software co-design environment based on classical schematic entry – a revolutionary embedded design.
Key Applications: Consumer, Industrial and Medical Applications | |||||||||||
| ||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | Cypress | PSoC Designer | PSoC 1 | PSoC Designer IDE accelerates system bring-up and time-to-market. Develop the applications using a library of pre-characterized analog and digital peripherals in a drag-and-drop design environment. Then, customize the design leveraging the dynamically generated API libraries of code. Finally, debug and test the designs with the integrated debug environment including in-circuit emulation and standard software debug features. PSoC Designer supports the entire library of PSoC 1 devices. |
| Programmer Software | Cypress | PSoC Programmer | All PSoC | The PSoC Programmer software tool supports all Cypress PSoC programming hardware and PSoC devices. PSoC Programmer is a simple GUI that connects to programming hardware to program and configure PSoC devices. From the GUI users will be able to select the target device, configure programming selections and execute a number of programming actions such as Program, Read, Verify and Erase. PSoC Programmer is a required installation for both PSoC Creator and PSoC Designer. |
| IDE | Cypress | PSoC Createor | PSoC 3 / PSoC 4 / PSoC 5 / PSoC 5LP | PSoC |
| IDE | ARM | Keil C51 | All 8051 Core | The Keil C51 development tools for the 8051 Microcontroller Architecture support every level of software developer from the professional applications engineer to the student just learning about embedded software development. Learn More |
| IDE | ARM | Keil MDK-ARM | ARM Cortex -M / Cortex-R4 / ARM7 / ARM9 | The MDK-ARM is a complete software development environment for Cortex |
| RTOS | Segger | embOS | ARM Cortex-M | embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications. It is a zero interrupt latency, high-performance RTOS that has been optimized for minimum memory consumption in both RAM and ROM, as well as high speed and versatility. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Emulator / Debugger | Cypress | CY3215-DKCY3215-DK | PSoC 1 | PSoC 1 In-Circuit Emulation Development Kit |
| Emulator / Debugger / Programmer | Cypress | CY8CKIT-002CY8CKIT-002 | PSoC 1 / PSoC 3 / PSoC 5 | MiniProg3 Program and Debug Kit is an all-in-one programmer for PSoC 1, PSoC 3 and PSoC 5 architectures and debug tool for PSoC 3 and PSoC 5 architectures |
| Programmer | Cypress | CY3217CY3217 | PSoC 1 (CY25/26xxx devices) | Miniprog1 programmer |
| Emulator / Debugger / Programmer | ARM | ULINK2ULINK2 | All 8051 Core/ARM Cortex-M / ARM7 / ARM9 | ULINK2 Debug Adapter |
| Emulator / Debugger / Programmer | ARM | ULINKProULINKPro | ARM Cortex-M / ARM7 / ARM9 | ULINKpro Debug and Trace Unit |
| Emulator | Segger | J-LinkJ-Link | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | JTAG/SWD Emulator with USB interface |
| Programmer | Segger | Flasher ARMFlasher ARM | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | Flash Programmer for ARM and Cortex cores |
Technical Documents
Learning Center
Design Elements
Video
| Video1 | Video2 |
|---|---|
Kit Features

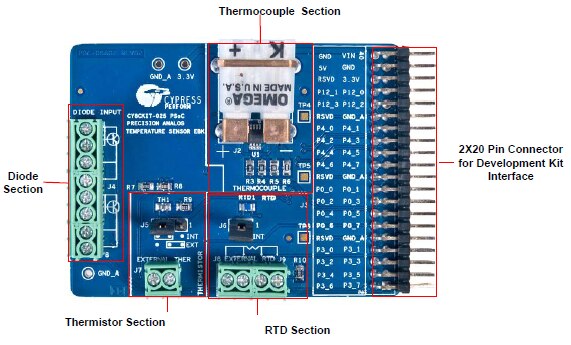

Features of CY8CKIT-025CY8CKIT-025:
- The kit enables the designer to measure temperature accurately to a resolution of 0.1º C.
- The kit supports temperature measurement using four temperature sensors:
- Thermocouple
- Thermocouples measure temperatures in a wide range, from –250 °C to 2300 °C. However, the voltage change is not linear and takes more CPU cycles for temperature computation. Thermocouples require another temperature sensor, such as the thermistor, diode, or RTD, to measure the cold junction temperature. The DS600DS600 IC or the thermistor can be used for cold junction compensation of the thermocouple. A thermistor, diode, or RTD cannot measure temperatures greater than 850 °C. Thermocouples have a very good response time
- Thermistor
- Thermistors have a highly nonlinear curve and take more CPU cycles for temperature computation. They measure temperature in the range –100 °C to 200 °C. Thermistors have a good response time and they are less expensive when compared to RTDs and thermocouples.
- Resistive Temperature Detector (RTD)
- RTDs have a linear and repeatable resistance variation with temperature, making it easier to compute temperature accurately. They measure temperature from –200 °C to 850 °C. RTDs are expensive due to their linearity and accuracy. RTDs have a lower response time compared to a thermistor or thermocouple.
- Diode
Diodes are the cheapest sensors for temperature measurement. They measure temperature in the range –50 °C to 150 °C. Accurate temperature measurement is difficult with a diode.
- Thermocouple
- Cypress’s PSoC programmable system-on-chip architecture gives you the freedom to not only imagine revolutionary new products, but the capability to also get those products to market faster than anyone else.
Temperature Sensor Comparison:
| Parameter | RTD | Thermocouple | Thermistor | Diode |
|---|---|---|---|---|
Temperature range (°C) | –200 to +850 | –250 to +2350 | –100 to +300 | –50 to +150 |
| Sensitivity at 25 °C | 0.387 Ω/°C | 40 μV/°C (K-type) | 416 Ω/°C | 250 μV /°C |
| Accuracy | High | Medium to High | Medium | Low |
| Linearity | Good | Fair | Poor | Good |
Typical distance of sensing | Surface mount for onboard temperature 3- and 4-wire up to a few hundred meters | <100 meters | Surface mount for onboard temperature Leaded for <1 meter | On-board temperature |
| Resource requirement | Excitation current,amplifier, ADC, reference resistor | Amplifier, ADC, voltagereference, and another temperature sensor for cold junction | Excitation current, ADC, reference resistor | Excitation current, amplifier, ADC |
| Response time | Slow | Fast | Fast | Slow |
Computational complexity (best possible accuracy) | High | Very high | Very high | Medium |
Kit Contents

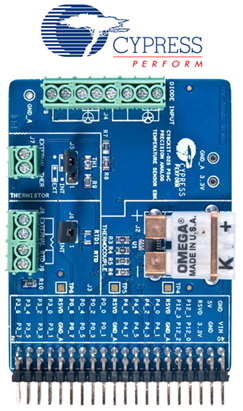

The Cypress CY8CKIT-025CY8CKIT-025 Temperature Sensor Expansion Board supplied with below contents:
- CY8CKIT-025CY8CKIT-025 PSoC Precision Analog Temperature Sensor Board
- Two CY8CKIT-012CY8CKIT-012 Prototype Boards
- Omega Thermocouple K-Type 5srtc-gg-20-36
- Two 2N39042N3904 NPN Transistors
- Two Prototype Headers for CY8CKIT-012 Prototype Board
- Quick Start Guide
- Resource CD
- Wires
- Mini Philips Cross Screw Driver (Black)
