Embest: Mini6245 Processor Card and SBC6245/SBC6345 Single Board Computer

Overview

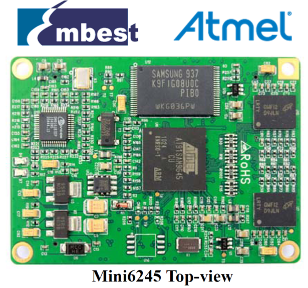

Embest Mini6245Mini6245 processor card is a compact ARM embedded controller based on the 400MHz Atmel AT91SAM9G45AT91SAM9G45 ARM926EJ-S microcontroller which is designed to provide a high performance processor solution with a high flexibility for both general and multimedia oriented applications.

The Mini6245Mini6245 processor card has external 128MB DDR2 SDRAM, 128MB NAND Flash and 1Kbit EEPROM on board and many peripherals like UART, Ethernet, USB, LCD, Touch screen, SPI, TWI, SDIO, PWM, AC97, JTAG and all IOs are brought out by two 1.27mm space dual row 80-pin female headers which is convenient and flexible for secondary development work.

Embest has also designed two different expansion boards to extend connectivity for implementing and extending the functions of the Mini6245Mini6245. The two boards are the SBC6245 and SBC6345 single board computers. Embest offers Linux 2.6.30 and WinCE 6.0 BSP for the two boards. They are high-performance single board computers designed to meet industrial needs and especially for HMI (human machine interaction) applications.

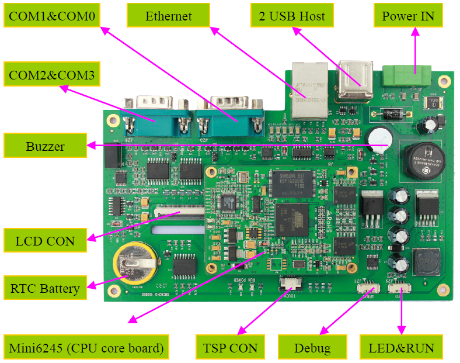

Embest SBC6245 is an ARM embedded single board computer (SBC) using Atmel AT91SAM9G45AT91SAM9G45 microcontroller which is capable of operating at up to 400MHz. It employs the Mini6245 processor cardMini6245 processor card as the CPU core board and the expansion board has extended the headers for many hardware periphrals including Serial ports, Ethernet, USB Host, LCD, Touch Screen, and RTC. The CPU core board Mini6245Mini6245 has integrated the AT91SAM9G45 CPU, 128MB DDR2 SDRAM, 128MB NAND Flash, 1Kbit EEPROM, Ethernet controller on board and connects to the expansion board through two 1.27mm pitch 80-pin connectors.

Embest has also designed a reliable and appealing metal case for the SBC6245 board with 5.6 inch TFT LCD and touch screen which can be used directly for HMI applications, the whole kit is called TH056A1. Users can create their own applications on the platform, this will greatly shorten your products time to market.

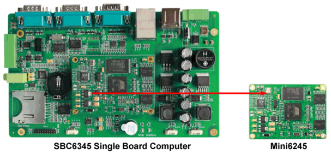

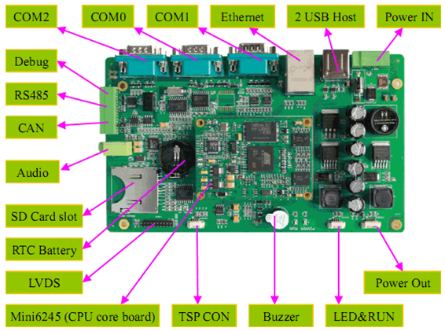

Embest SBC6345 is an ARM embedded single board computer (SBC) using Atmel AT91SAM9G45AT91SAM9G45 microcontroller which is capable of operating at up to 400MHz. It also employs the Mini6245Mini6245 as the CPU core board and features 5 UARTs, 2 USB, Ethernet, CAN, LVDS, SD and Audio on board. The CPU core board Mini6245 has integrated the AT91SAM9G45 CPU, 128MB DDR2 SDRAM, 128MB NAND Flash, 1Kbit EEPROM, Ethernet controller on board and connects to the expansion board through two 1.27mm pitch 80-pin connectors.

Embest has also designed a reliable and appealing metal case for the SBC6345 board with 10.4 inch TFT LCD and touch screen which can be used directly for HMI applications, the whole kit is called TH104A1. Users can create their own applications on the platform, this will greatly shorten your products time to market.

Key Applications: Industrial needs and especially for HMI (human machine interaction) applications.

Development Tools

Software Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
IDE	Atmel	Atmel Studio 6	ALL ARM	Atmel Studio 6 Integrated Development Environment (IDE) is the integrated development environment (IDE) for developing and debugging Atmel ARM Cortex-M and Atmel AVR microcontroller (MCU) based applications. The Atmel Studio 6 IDE gives you a seamless and easy-to-use environment to write, build and debug your applications written in C/C++ or assembly code. Learn More
IDE	ARM Keil	MDK ARM	ARM Cortex-M  / Cortex-R4 / ARM7 / ARM9	The MDK-ARM (Microcontroller Development Kit) is the complete software development environment for ARM7, ARM9, Cortex-M, and Cortex-R4 processor-based devices.  Learn More
RTOS	Micrium	Micrium uc/OSIII	ALL ARM	μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and next embedded sytem projects. Learn More
RTOS	ARM Keil	KEIL RTX	ALL ARM	The Keil RTX is a royalty-free, deterministic Real-Time Operating System designed for microcontrollers based on ARM7TDMI, ARM9, and Cortex-M CPU cores. Learn More
RTOS	Segger	embOS	ALL ARM	SEGGER embOS (Real Time Operating System) follows strict, yet efficient coding and documentation standards. embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications. Learn More

Hardware Development Tools:

Tool Type	Supplier	MPN	Supported Family	Description
Debuggers, Emulators & JTAG Tools	Atmel	AT91SAM-ICEAT91SAM-ICE	SAM3 / SAM7 / SAM9	USB JTAG In-Circuit Emulator for SAM3, SAM7 and SAM9 ARM-based microcontrollers
Emulator / Debugger / Programmer	ARM	ULINK2ULINK2	ARM Cortex-M  / ARM7 / ARM9	ULINK2 Debug Adapter
Emulator / Debugger / Programmer	ARM	ULINKProULINKPro	ARM Cortex-M  / ARM7 / ARM9	ULINKpro Debug and Trace Unit
Emulator	Segger	J-LinkJ-Link	ARM Cortex-M  / Cortex-R4 / Cortex-A / ARM7 / ARM9	JTAG/SWD Emulator with USB interface
Programmer	Segger	Flasher ARMFlasher ARM	ARM Cortex-M  / Cortex-R4 / Cortex-A / ARM7 / ARM9	Flash Programmer for ARM and Cortex cores
