| Overview

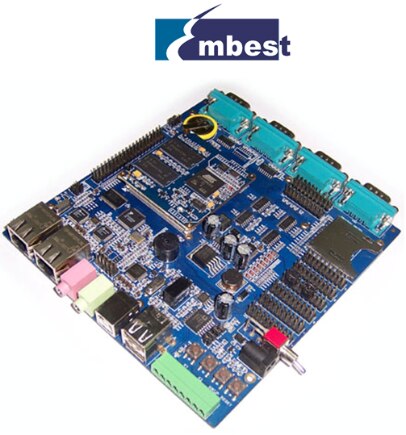

The SBC6300X Single Board Computer from Embest is based on an Atmel AT91SAM9263AT91SAM9263 MCU with a 32-bit ARM instruction set and a complete embedded software environment. It has a flexible design with a tiny controller board (Mini6300Mini6300) mounted directly on an expansion board through two 0.8mm 100pin Free Height (FH) surface-mount connectors.
The Mini6300Mini6300 Processor Card is a tiny Atmel AT91SAM9263AT91SAM9263 module board. It is a core processor card which is ready to be the heart of your next design. The Mini6300 Processor Card has 64MB SDRAM, 128MB Nand Flash and a 2Kbit EEPROM on board. The user is able to design their own expansion board according to the interface definition. Embest itself has designed an expansion board for the Mini6300; for customer reference, the whole system is called the SBC6300X Single Board Computer. In addition to features provided by the Mini6300, the expansion board has increased IO capabilities and has extended various hardware interfaces such as UART, Ethernet, CAN, USB, LCD, Keyboard, Audio, ADC, SD card and more.
The CPU board of the SBC6300X has an ARM9 processor and memory on board. The expansion board has extended the features of the AT91SAM9263AT91SAM9263 and offers various hardware interfaces including 8 UARTs, 2 Ethernet ports, USB Host and Device, CAN, TWI, LCD, Touch Screen, Keyboard, SD card, Jtag, Audio and etc. Embest offers both Windows CE 6.0 BSP and Linux 2.6.24 BSPs for this board. Users can develop software with Microsoft eVC or linux tool chain, which can allows your products to reach the market quickly.
The rich industrial bus interface resources of this single board computer make it ideal for embedded applications requiring wide operating temperature ranges, and flexible I/O connectivity. It can be used in many application fields, such as medical equipment, industrial field control, smart instrumentation, industrial control devices, monitoring, automotive electronics and other fields.
Ordering Information:
Key Applications: Medical equipment, Industrial field control, Smart instrumentation, Industrial control devices, Monitoring, Automotive electronics | |||||||||||
| ||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | Atmel |
ALL ARM | Atmel Studio 6 Integrated Development Environment (IDE) is the integrated development environment (IDE) for developing and debugging Atmel ARM | |
| IDE | ARM Keil | MDK ARM | ARM Cortex -M / Cortex-R4 / ARM7 / ARM9 | The MDK-ARM (Microcontroller Development Kit) is the complete software development environment for ARM7, ARM9, Cortex-M, and Cortex-R4 processor-based devices. Learn More |
| RTOS | Micrium | ALL ARM | μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and next embedded sytem projects. Learn More | |
| RTOS | Segger | ALL ARM | SEGGER embOS (Real Time Operating System) follows strict, yet efficient coding and documentation standards. embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Debuggers, Emulators & JTAG Tools | Atmel | AT91SAM-ICEAT91SAM-ICE | SAM3 / SAM7 / SAM9 | USB JTAG In-Circuit Emulator for SAM3, SAM7 and SAM9 ARM-based microcontrollers |
| Emulator / Debugger / Programmer | ARM | ULINK2ULINK2 | ARM Cortex-M / ARM7 / ARM9 | ULINK2 Debug Adapter |
| Emulator / Debugger / Programmer | ARM | ULINKProULINKPro | ARM Cortex-M / ARM7 / ARM9 | ULINKpro Debug and Trace Unit |
| Emulator | Segger | J-LinkJ-Link | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | JTAG/SWD Emulator with USB interface |
| Programmer | Segger | Flasher ARMFlasher ARM | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | Flash Programmer for ARM and Cortex cores |
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
| Layout | Embest: Mini6300 Expansion Interface (Signals routed to the two 100-pin expansion connectors) |
Video
Kit Features
Hardware Features

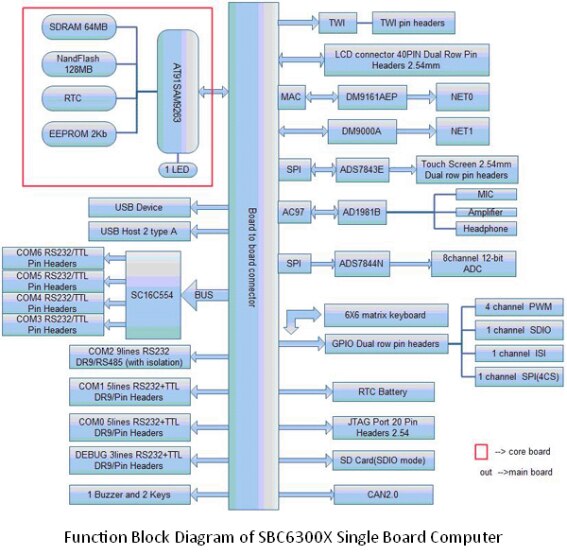

Features of SBC6300X Single Board Computer:
- Power Supply: +12V
- Working Temperature: -10~70°C
- Processor: Atmel AT91SAM9263AT91SAM9263 (ARM926EJ-S core with MMU capable of 200 MHz operation)
- 64Mbyte SDRAM
- 128Mbyte NAND Flash (bootable)
- 2Kbit EEPROM
- 2 10M/100M Ethernet port
- 8 serial ports (Debug: 3-wire RS232/TTL, COM0: 5-wire RS232/TTL, COM1: 5-wire RS232/TTL, COM2: 3-wire RS232/TTL/half-duplex RS485, EXT_COM1/2/3/4: 5-wire RS232)
- 2 USB2.0 full-speed (12 Mbits/S) Host ports
- USB2.0 full-speed (12Mbits/S) Device port
- 2*20-pin LCD interface
- Touch screen (4-wire resistive)
- CAN2.0 interface
- TWI interface
- Audio Input/Output Jacks
- 8-channel 12-bit ADC
- RTC (battery backed)
- SD/MMC card slot
- Buzzer
- 4 Buttons (two for user defined, one for Wakeup and one for Reset)
- Power switch
- 6*6 keyboard interface
- 20-pin Panel interface (Reset & Wakeup & IO & Switch)
- 41 GPIOs (can multiplex with interfaces including ISI, 4 PWM, 1 SDIO and 1 SPI1)
- 20-pin JTAG interface
- Dimension: 150mm x 143.5mm (expansion board)

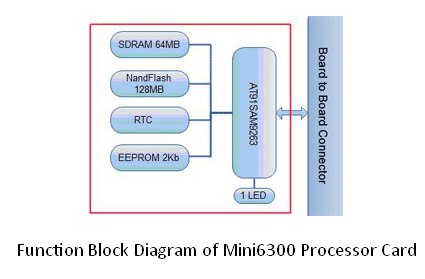

Features of Mini6300Mini6300 Processor Card:
- Atmel AT91SAM9263AT91SAM9263 (ARM926EJ-S core with MMU)
- DSP Instruction Extensions
- ARM Jazelle
Technology - 16 Kbyte Data Cache, 16 Kbyte Instruction Cache, Write Buffer
- 210 MIPS at 190 MHz
- Embedded ICE
- 128 Kbytes internal ROM
- 80 Kbytes internal SRAM
- External Memory
- 64 Mbytes SDRAM
- 128 Mbytes Nand Flash
- 2 Kbit EEPROM
- Temperature: -10 to +70 Celsius
- System working status indicator
- Two 0.8mm, 100pin Free Height (FH) surface-mount male connectors for connecting with expansion board (I/O CPU lines and all hardware interfaces can be extended via the two connectors)
- Single 3.3V power supply
- Dimensions: 52mm x 52mm
Software Features
| OS | Item | Feature | Description |
| Linux | BIOS | bootstrap | Nand Flash |
| u-boot | Nand Flash | ||
| Download/Update kernel and file system through Ethernet. | |||
Kernel and Drivers | Version | Linux2.6.24 | |
| File system | Support ROM/CRAM/EXT2/EXT3/FAT/NFS/ JFFS2/YAFFS2 | ||
| Driver | Serial, RTC, NET, LCD, Touch Screen, Audio, USB, Buzzer, Keypad, CAN, GPIO, LED, Watchdog, SD | ||
| Web Server | Web server | Apache | |
| WinCE | Bootloader | firstboot | NAND Flash |
| eboot | NAND Flash | ||
| Download/update image through Ethernet | |||
| Kernel and Drivers | Version | Eboot (Wince 6.0) | |
| Driver | Serial, RTC, NET, LCD, Touch Screen, USB, Buzzer, Keypad, LED, GPIO, Watchdog, CAN, Audio, ADC, SD | ||
| EVC test program | Provide EVC test program for each driver module. |
Kit Contents
The Embest SBC6300X Single Board Computer is supplied with the following contents:
- Hardware:
- SBC6300X board (including CPU board Mini6300Mini6300 and expansion board)
- USB cable
- Serial cable
- Ethernet cable
- 12V power adapter
- LCD [Optional - 4.3 inch LCD (resolution: 480*272), 7 inch LCD (resolution: 800*480)]
- Software and Documents:
- Documents (user manual, schematic drawing in PDF format, Datasheet)
- WinCE 6.0 BSP
- Linux 2.6.24 BSP
