Texas Instruments: Stellaris LM4F232 USB+CAN Evaluation Kit

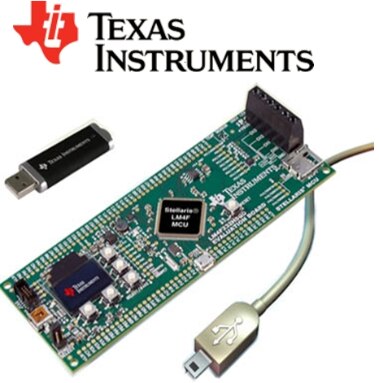

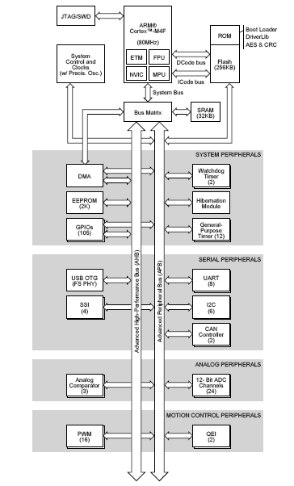

Kit Overview Texas Instrument’s Stellaris LM4F232 USB+CAN Evaluation Kit is a compact and versatile evaluation platform for the Stellaris LM4F232 ARM Cortex-M4F-based microcontroller. The evaluation kit design highlights the LM4F232 microcontroller’s integrated USB 2.0 On-the-Go/Host/Device interface, CAN, analog, and low-power capabilities. The evaluation kit features a Stellaris microcontroller in a 144-LQFP package, a color OLED display, USB OTG connector, a microSD card slot, a coin cell battery for use with the Stellaris low-power Hibernate mode, a temperature sensor, a three-axis accelerometer for motion detection, and easy access through holes to all of the available device signals. The kit also includes extensive source code examples, allowing you to start building C code applications quickly. Several versions of the Kit are available:   Ordering Information: MPN Description EKI-LM4F232 KI-LM4F232 Evaluation Kit with IAR Tools EKK-LM4F232 EKK-LM4F232 Evaluation Kit with Keil Tools EKS-LM4F232 EKS-LM4F232 Evaluation Kit with Code Composer Studio EKC-LM4F232 EKC-LM4F232 Evaluation Kit with Code Sourcery Tools EKT-LM4F232 EKT-LM4F232 Evaluation Kit with Code Red Technologies Tools Key Applications: MicroPrinters (portable printer/scanners, thermal micro printers), Home Appliances, Home Automation, Wired and wireless connectivity modules, Motor control, Uninterruptible Power Supplies.

More Development Kits and Tools Texas Instruments Development Kits Texas Instruments Development Tools Development Platforms & Kits element14 Knode

Development Tools

Software Development Tools:

Tool   Type	Supplier	MPN	Supported   Family	Description
IDE	Texas Instruments	Code Composer Studio (CCStudio)	TI ARM MCUs	CCStudio is an integrated development environment (IDE) for TI embedded   processor families. CCStudio comprises a suite of tools used to develop and debug embedded applications. It includes   compilers for each of TI's device families, source code editor, project build environment, debugger, profiler, simulators,   real-time operating system and many other features. Learn More
IDE	ARM	Keil MDK-ARM	ARM Cortex-M  / Cortex-R4 / ARM7 / ARM9	The MDK-ARM is a complete software development environment for Cortex-M, Cortex-R4, ARM7 and ARM9   processor-based devices. MDK-ARM is specifically designed for microcontroller applications, it is easy to learn and use, yet   powerful enough for the most demanding embedded applications. Learn More
RTOS	Micrium	µC/OS-III	TI ARM MCUs	μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and next embedded sytem projects. Using a commercial real-time kernel such as μC/OS-III provides a solid foundation and framework to the design engineer dealing with the growing complexity of embedded designs. Learn More
RTOS	Segger	embOS	TI ARM MCUs	SEGGER embOS (Real Time Operating System) follows strict, yet efficient coding and documentation standards. embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications. Learn More

Hardware Development Tools:

Tool   Type	Supplier	MPN	Supported   Family	Description
Emulator / Debugger / Programmer	ARM	ULINK2	ARM Cortex-M  / ARM7 / ARM9	ULINK2 Debug Adapter
Emulator / Debugger / Programmer	ARM	ULINKPro	ARM Cortex-M  / ARM7 / ARM9	ULINKpro Debug and Trace Unit
Emulator	Segger	J-Link	ARM Cortex-M  / Cortex-R4 / Cortex-A / ARM7 / ARM9	JTAG/SWD Emulator with USB interface
Programmer	Segger	Flasher ARM	ARM Cortex-M  / Cortex-R4 / Cortex-A / ARM7 / ARM9	Flash Programmer for ARM and Cortex cores
