NXP: Keil MCB Evaluation Boards for NXP LPC1700 Family Microcontrollers

Kit Overview

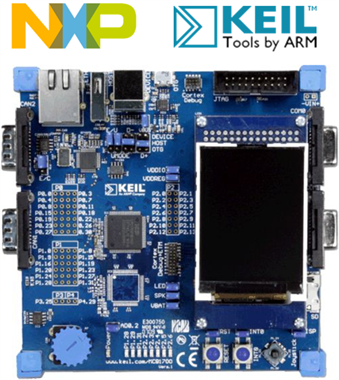

The Keil MCB1700 Evaluation Boards enable the user to create and test working programs based on the NXP LPC1700 family of ARM Cortex-M3 processor-based devices. The NXP (founded by Philips) LPC1700 are ARM 32-bit Cortex-M3 Microcontrollers with MPU, CPU clock up to 100MHz, 512kB on-chip Flash ROM with enhanced Flash Memory Accelerator, In-System Programming (ISP) and In-Application Programming (IAP), 64kB RAM, Nested Vectored Interrupt Controller, eight channel General purpose DMA controller, AHB Matrix, APB, Ethernet 10/100 MAC with RMII interface and dedicated DMA, USB 2.0 full-speed Device controller and Host/OTG controller with DMA, CAN 2.0B with two channels, four UARTs, one with full Modem interface, three I2C serial interfaces, three SPI/SSP serial interfaces, I2S interface, General purpose I/O pins, 12-bit ADC, 10-bit DAC, four 32-bit Timers with capture/compare, standard PWM Timer block, motor control PWM for three-phase motor control, quadrature encoder, watchdog timer, real time clock with optional battery backup, system tick timer, repetitive interrupt timer, brown-out detect circuit, power-on reset, power management unit, wakeup interrupt controller, crystal oscillator, 4MHz internal RC oscillator, PLL, JTAG and serial wire debug/trace port with ETM.

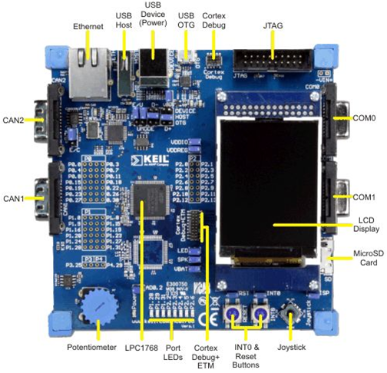

Both evaluation boards provide a color TFT LCD display and interfaces for MicroSD card, CAN, 100/10M Ethernet, and USB2.0 full speed Interface. The boards also feature a 5-position joystick to control port pin input. An LF Amplifier on the MCB1700MCB1700 connects the D/A output of the LPC1700 device to a speaker. Users may use this LF Amplifier to generate sound. An adjustable analog voltage source is on the MCB1700MCB1700 board for testing the Analog to Digital output feature of the LPC1700. A configuration jumper enables and disables this feature. In addition, the MCB1700MCB1700 board incorporates both a JTAG interface and a Cortex Debug + ETM interface for using with ULINK2  and ULINK Prorespectively.

Ordering Information:

Key Applications: eMetering, Alarm systems, Lighting, White goods, Industrial networking, and Motor control.
