 | Kit Overview

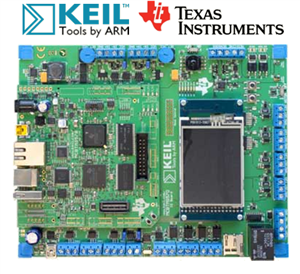

The MCBTMS570MCBTMS570 Development Kit is an Cortex-R4 based board set you may use to generate and test application programs for the Texas Instruments TMS570x microcontroller family. With this hands-on process, you can determine the hardware and software requirements for current and future product development. The MCBTMS570MCBTMS570 Development Kit ships with the TMS570LS20216 device that is a superset of several other device variants of the TMS570x microcontroller series. The MCBTMS570 Board contains all the hardware components required in a single-chip TMS570x system.
The TMS570LS series is a high performance automotive grade microcontroller family which has been certified for use in IEC 61508 SIL3 safety systems. The safety architecture includes Dual CPUs in lockstep, CPU and Memory Built-In Self Test (BIST) logic, ECC on both the Flash and the data SRAM, parity on peripheral memories, and loop back capability on peripheral IOs.
The TMS570LS family integrates the ARM
With integrated SIL3 certified safety features and a wide choice of communication and control peripherals, the TMS570LS series is an ideal solution for high performance real time control applications with safety critical requirements.
Key Applications: Transportation applications, like Braking systems (ABS and ESC), Electric power steering (EPS), HEV/EV inverter systems, Aerospace, Railway control, communications and signaling, Off-road vehicles etc. | |||||||||||
| ||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | Texas Instruments | Code Composer Studio (CCStudio) | TI ARM MCUs | CCStudio is an integrated development environment (IDE) for TI embedded processor families. CCStudio comprises a suite of tools used to develop and debug embedded applications. It includes compilers for each of TI's device families, source code editor, project build environment, debugger, profiler, simulators, real-time operating system and many other features. Learn More |
| IDE | ARM | Keil MDK-ARM | ARM Cortex -M / Cortex-R4 / ARM7 / ARM9 | The MDK-ARM is a complete software development environment for Cortex-M, Cortex-R4, ARM7 and ARM9 processor-based devices. MDK-ARM is specifically designed for microcontroller applications, it is easy to learn and use, yet powerful enough for the most demanding embedded applications. Learn More |
| RTOS | Micrium | µC/OS-II | TMS570 | µC/OS-II, the Real-Time Kernel, is a portable, ROMable, scalable, preemptive, real-time deterministic multitasking kernel for microprocessors, microcontrollers and DSPs. Offering unprecedented ease-of-use, µC/OS-II is delivered with complete source code and in-depth documentation. Learn More |
| RTOS | Micrium | µC/OS-III | TMS570 | μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and next embedded sytem projects. Using a commercial real-time kernel such as μC/OS-III provides a solid foundation and framework to the design engineer dealing with the growing complexity of embedded designs. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Emulator / Debugger / Programmer | ARM | ULINK2ULINK2 | ARM Cortex-M / Cortex-R4 / ARM7 / ARM9 | ULINK2 Debug Adapter |
| Emulator / Debugger / Programmer | ARM | ULINKProULINKPro | ARM Cortex-M / Cortex-R4 / ARM7 / ARM9 | ULINKpro Debug and Trace Unit |
| Emulator | Segger | J-LinkJ-Link | ARM Cortex-M / Cortex-R4 / ARM7 / ARM9 | JTAG/SWD Emulator with USB interface |
| Programmer | Segger | Flasher ARMFlasher ARM | ARM Cortex-M / Cortex-R4 / ARM7 / ARM9 | Flash Programmer for ARM and Cortex cores |
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
| Schematics | TI: IO Board Schematics of MCBTMS570 |
| Schematics | TI: CPU Board Schematics of MCBTMS570 |
Video

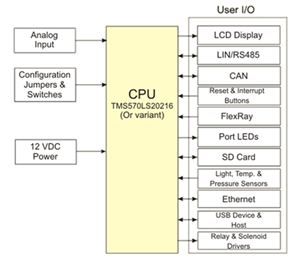

Kit Features
- 160MHz TMS570 Cortex-R4 processor-based device
- On-Chip Memory: 2MB Flash and 160KB SRAM
- External Memory: 512KB SRAM
- Color QVGA TFT LCD with touchscreen
- A detachable, 240x320 TFT, color LCD display with 4-wire, resistive touch screen. You may use this graphic display device to show real-time debug and program status messages.
- 3 CAN 2.0 Ports
- 3 standard DB9 connectors for applications requiring CAN communications.
- LIN and RS485 Ports
- Connectors are provided for accessing the LIN 2.0 and RS485 interfaces.
- Dual-channel FlexRay Interface
- 2 connectors are provided for access to the FlexRay network communication interface.
- USB 2.0 Ports - USB, USB-OTG, & USB Host
- Standard USB Type A, Type B and mini-B connectors for USB communication applications.
- 100/10M Ethernet Port
- A standard RJ45 connector on the MCBTMS570 board connects to an on-board Ethernet transceiver for applications requiring Ethernet communications.
- Temperature and Light Sensor
- Sensors for measuring ambient temperature and light are available via on-chip A/D converters.
- Amplified Speaker
- A low-power audio amplifier drives an on-board loudspeaker for developing applications that require audio output.
- MicroSD Card Connector
- A MicroSD Card connector for developing applications requiring access to MicroSD Cards.
- Relay and Solenoid Drivers
- Connectors are provided to access the on-board SPDT relay and 4 solenoid drivers.
- JTAG Download and Debugging and and ETM trace
- The MCBTMS570 board incorporates both a JTAG interface for flash programming and in-circuit debugging, and a MIPI ETM interface for instruction trace debugging.
Kit Contents
- The MCBTMS570 CPU board.
- The MCBTMS570 I/O board.
- A 12VDC, 100-240 VAC power adapter.
- A µVision IDE Quick Start Guide.
- Example Programs for the MCBTMS570 Development Kit
- All examples can be compiled and debugged using the MDK-ARM Lite Edition.
