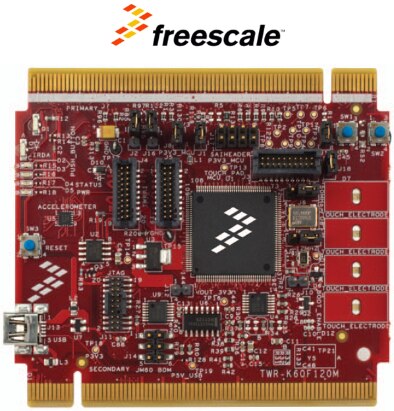

The TWR-K60F120MTWR-K60F120M is a development board for the Kinetis K10, K20 and K60 family 32-bit ARM
The TWR-K60F120MTWR-K60F120M is a Tower Controller Module compatible with the Freescale Tower System. It can function as a stand-alone, low-cost platform for the evaluation of the Kinetis K10, K20, and K60 family of microcontroller (MCU) devices. The TWR-K60F120M features the Kinetis MK60FN1M0VLQ12MK60FN1M0VLQ12 low-power microcontroller based on the ARM
The TWR-K60F120MTWR-K60F120M is available as a stand-alone product or as a kit (TWR-K60F120M-KIT) with the Tower Elevator Modules (TWR-ELEV) and the Tower Serial Module (TWR-SER). The TWR-K60F120M can also be combined with other Freescale Tower peripheral modules to create development platforms for a wide variety of applications.
The Kinetis MCU portfolio consists of multiple pin-, peripheral- and softwarecompatible MCU families based on the ARM
Ordering Information:
Key Applications: Consumer (Home Appliances), Industrial ( Programmable Logic Control, Portable Electronic Point of Sale Terminals, Building Control, LCD Control Panel, Smart Cities Connectivity Through IPv6, Smart Grid and Smart Metering, Digital Power Conversion, Factory Automation ) | |||||||||||
| ||||||||||||
Development Tools
Software Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| IDE | Freescale | CodeWarrior | All Freescale MCU's | Freescale's software and development solutions take you beyond the silicon, helping to bring your embedded applications to life. Learn More |
| IDE | ARM Keil | MDK ARM | ARM Cortex -M / Cortex-R4 / ARM7 / ARM9 | The MDK-ARM (Microcontroller Development Kit) is the complete software development environment for ARM7, ARM9, Cortex-M, and Cortex-R4 processor-based devices. Learn More |
| RTOS | Freescale | MQX | ColdFire / HC08 / HC12 / ARM / S08 / RS08 / PowerPC | The Freescale MQX Real-Time Operating System (RTOS) provides real-time performance within a small, configurable footprint. This RTOS is designed to allow you to configure and balance code size with performance requirements. Learn More |
| RTOS | Micrium | uC/OS III | ColdFire / HC08 / HC12 / ARM / S08 / RS08 / PowerPC | μC/OS-III is Micrium’s newest RTOS, designed for developers who need to save time on their current and next embedded sytem projects. Using a commercial real-time kernel such as μC/OS-III provides a solid foundation and framework to the design engineer dealing with the growing complexity of embedded designs. Learn More |
| RTOS | Segger | embOS | ColdFire / HC08 / HC12 / ARM / S08 / RS08 | SEGGER embOS (Real Time Operating System) follows strict, yet efficient coding and documentation standards. embOS is a priority-controlled real time operating system, designed to be used as foundation for the development of embedded real-time applications. Learn More |
Hardware Development Tools:
| Tool Type | Supplier | MPN | Supported Family | Description |
|---|---|---|---|---|
| Debuggers, Emulators & JTAG Tools | Freescale | U-MULTILINKU-MULTILINK | HC08 / HCS12 / S08 / RS08 / Coldfire / Kinetis | P&E USB Multilink Universal debug and programming interface for HCS08, HC(S)12(X), ColdFire, Qorivva MPC55xx/56xx, and Kinetis |
| Debuggers, Emulators & JTAG Tools | ARM | ULINK2ULINK2 | ARM Cortex-M / ARM7 / ARM9 | USB DEBUG |
| Debuggers, Emulators & JTAG Tools | ARM | ULINKProULINKPro | ARM Cortex-M / ARM7 / ARM9 | High-Speed Debug and Trace Unit |
| Emulator | Segger | J-LinkJ-Link | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | JTAG/SWD Emulator with USB interface |
| Programmer | Segger | Flasher ARMFlasher ARM | ARM Cortex-M / Cortex-R4 / Cortex-A / ARM7 / ARM9 | Flash Programmer for ARM and Cortex cores |
Technical Documents
Learning Center
Design Elements
| Type | Description |
|---|---|
| Application Library | Freescale: Software Code for MQX Board Support Package Porting Guide on KEIL |
Video
| Video1 | Video2 |
|---|---|
Kit Features
- MK60FN1M0VLQ12MK60FN1M0VLQ12 Kinetis MCU
120MHz maximum core operating frequency
144 LQFP, 20mm x 20 mm, 0.5mm pitch package
1.71V – 3.6V operating voltage input range
1 Mbyte of program flash, 128 Kbytes of static RAM
NAND flash controller
External bus interface
Power management controller with 10 different power modes
Multi-purpose clock generator with PLL and FLL operation modes
16-bit SAR ADC, 12-bit DAC
High-speed analog comparator with 6-bit DAC
Programmable voltage reference
USB high-speed OTG controller
USB full-speed/low-speed OTG/Host/Device controller with device charge detect
10/100 Mbps Ethernet MAC
SPI, I2C (w/ SMBUS support), UART (w/ ISO7816, CEA709.1-B (LON), and IrDA support), CAN, I2S
SD Host Controller (SDHC)
GPIO with pin interrupt support, DMA request capability, digital glitch filtering
Capacitive touch sensing inputs (TSI)
Debug interfaces: JTAG, cJTAG, SWD
Trace: TPIO, FPB, DWT, ITM, ETM, ETB
- S08JM60 based open-source BDM (OSBDM) circuit
- On-board JTAG debug circuit (OSJTAG) with virtual serial port
- 2Gb of SLC NAND flash memory
- 4 user-controlled status LEDs
- 4 Capacitive Touch Pads and 2 mechanical push buttons
- Socket for Capacitive Touch Pad daughter board (Touch TWRPI)
- Socket for Tower Plugin (TWRPI, e.g. sensor board)
- Potentiometer

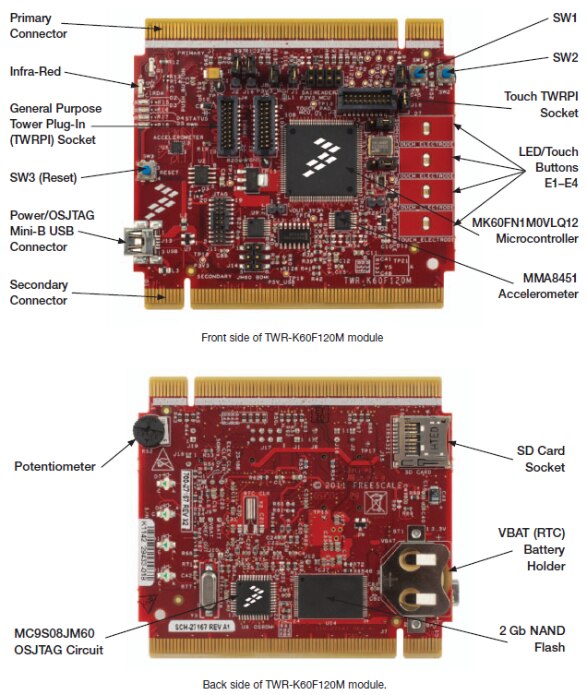

- Three-axis digital accelerometer (MMA8451QMMA8451Q)
- Battery Holder for 20mm lithium battery (e.g. 2032, 2025)
- SD Card slot
Kit Contents
The Freescale TWR-K60F120MTWR-K60F120M Module supplied with below contents:
- TWR-K60F120MTWR-K60F120M board assembly
- 3ft USB cable
- Interactive DVD with software installers and documentation
- Quick Start Guide
The Freescale TWR-K60F120M-KITTWR-K60F120M-KIT Kit supplied with below contents:
- TWR-K60F120M MCU module
- TWR‐ELEVTWR‐ELEV – Primary and Secondary Elevator Modules
- TWR‐SERTWR‐SER – Serial module including USB host/device/OTG, Ethernet, CAN, RS232 and RS485
