This short post is lists the test points on the evaluation kit.
The ones that are used in the user guide's evaluation instructions are documented in the narrative.

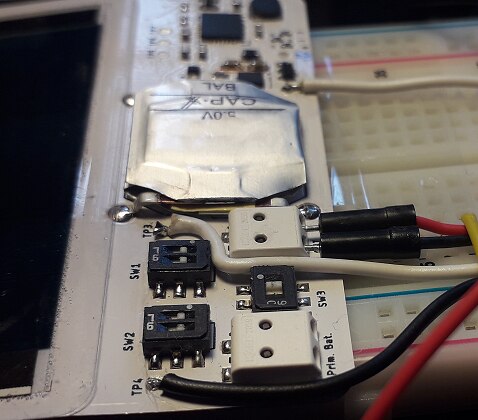

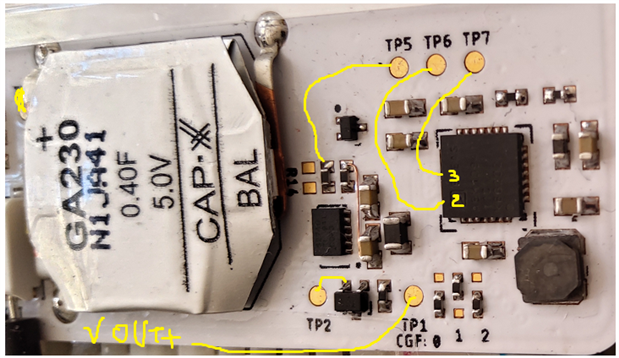

For my self-documentation, I'm listing them here, while I try to find out what the other points are.
- V out
- ? left upper pin SOT above the tp
- V cap
- GND
- ?upside of resistor right of supercap
- ? 2nd pin down left epishine
- ? 3rd pin down left epishine
