element14 presents ARM Cortex M3 & M4 based MCBSTM32F200/400 Evaluation Board

Kit Overview

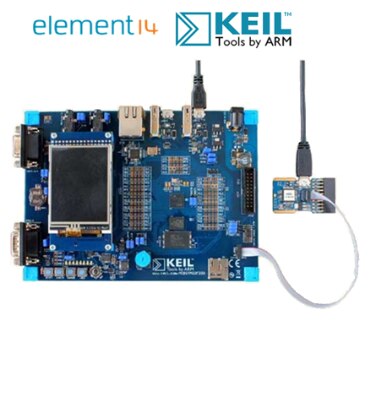

element14 presents its latest and most capable Keil MCBSTM32F200MCBSTM32F200 and Keil MCBSTM32F400MCBSTM32F400 Evaluation Boards for applications development based on the STMicroelectronics STM32 Fx series of ARM Cortex-M3 and Cortex–M4 processor-based devices. The STM32 Fx series of ARM Cortex-M3 and Cortex-M4 processor-based devices featured on the boards have the flexibility to reduce power consumption in applications requiring both high processing power and low-power performance when running at low voltage or on rechargeable batteries.

The MCBSTM32F200MCBSTM32F200 board features superset of STM32F207x series STM32F207IGSTM32F207IG ARM Cortex-M3 processor-based microcontroller which offers 1MB Flash and 128KB RAM on-chip memory, and the MCBSTM32F400MCBSTM32F400 features superset of STM32F407x series an STM32F407IGSTM32F407IG Cortex-M4 processor-based microcontroller with 1MB Flash and 192KB RAM on-chip memory.

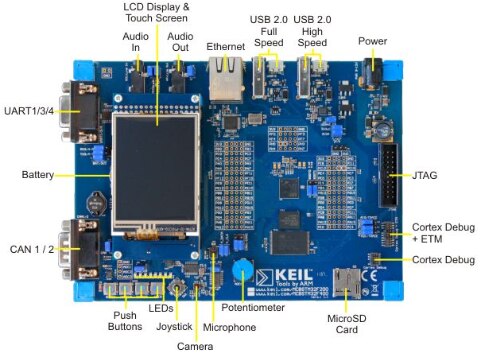

In addition, both evaluation boards are populated with 8MB NOR Flash, 512MB NAND Flash, 2MB SRAM, and 8KB I2C EEPROM with an NFC interface. They provide a color QVGA LCD and interfaces for SD Card, CAN, 10/100 Ethernet and Full/High speed USB. The boards also feature a 3-axis digital Accelerometer, a 3-axis digital Gyroscope, a digital microphone, and a digital VGA camera. They also feature a dedicated audio PLL and two full duplex I2S.

The kits have up to 15 communication interfaces (including six USARTs running up to 10.5 Mbits/s, three SPI running up to 42 Mbits/s, three I2C, two CAN, SDIO). Analogue functions include two 12-bit DACs, three 12-bit ADCs reaching 2.4 MSPS or 7.2 MSPS in interleaved mode. The MCBSTM32F200/400 has up to 17 timers, 16-bit and 32-bit running up to 120/168 MHz. The MCBSTM32F200/400 boards contain all the hardware components required in a single-chip STM32Fx system.

Keil MDK ARM Development Tool: The Keil MDK-ARM development tool is a complete C/C++ software development environment for Cortex-M, Cortex-R4, ARM7 and ARM9 processor-based devices which includes debug & trace capabilities, a real-time operating system as well as middleware and is fully adapted to the peripherals of the STM32 F2 and STM32 F4 series of microcontrollers. It's easy to learn and use, yet powerful enough for the most demanding embedded applications. The middleware template applications are provided for USB Device, USB Host, TCP/IP networking, and FAT File System. Learn More.

ULINK Debug Adapter:

The Keil ULINK ME Debug Adapter connect your PC's USB port to your target system (via JTAG or similar debug interface) and allow you to debug embedded programs running on target hardware. The ULINK-ME Debug Adapter supports the 10-pin Cortex Debug interface available on MCBSTM32F200/400 boards. Learn More

Evaluation Boards Buying Options:

The MCBSTM32F200 and MCBSTM32F400 is available as a standalone evaluation board or as a starter kit which includes Keil MDK ARM Lite Development Tool and a ULINK-ME Debug Adapter:

Key Applications: Motor drive and application control, Medical equipment, Industrial applications: PLC, inverters, circuit breakers, Printers, and scanners, Alarm systems, video intercom, and HVAC, Home audio appliances.
