Here is the first batch (Projects 1-6) of the Ghost of Past Holiday Past on Project14:





Get Inspired by Past Holiday Special Projects:





The Projects:



Project 1: Empty RGB XMAS Tree by



The holidays are a time for Doing-It-Yourself and making Small Things beautiful!

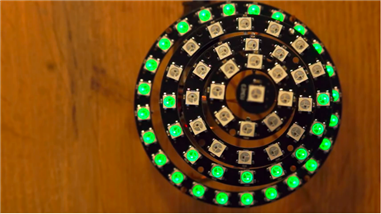

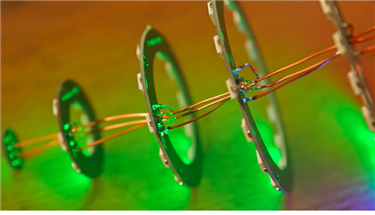

The LED rings are held by the copper wires that connect them, it is empty on the inside! The WS2812 RGB LED allows almost infinite colors and patterns to be created The code and a little guide can be found on Github



Empty RGB XMAS Tree





Project 2: LED fade in/out effect by



The holidays are a time when simple also means special!

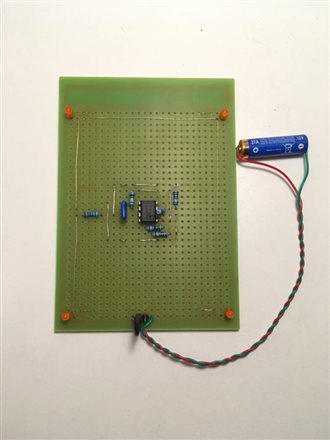

The basic idea was to create a simple LED fade in/out effect circuit. used a single dual op-amp NJM4556 which first stage is configured in comparator mode and the second stage is configured as integrator. Triangular wave from integrator output is used to drive four LEDs. NJM4556 op-amp is able to deliver around 70 mA. It is enough to drive four LEDs with current 10 mA for each. Frequency of circuit is set to around 0.5 Hz. In his post you can find a schematic and details on the circuit, as well as, amplitude and frequency calculations.



LED Fade In/Out Effect
image"A simple but effective analog device for LED lighting effects." - Community Member Judgeimage

"A simple but effective analog device for LED lighting effects." - Community Member Judge





"This was a nice simple circuit but which gave a really useful output. Could be used for system testing or in this case just flickering an LED nicely. Simple but effective and not a TTL gate in sight." - Community Member Judge

Also on Project14 by



Project 3: Christmas tree made from WS2812 leds by :



The holidays are a time for Christmas trees and LEDs or just an LED Christmas tree!



A small Christmas tree made from 15 WS2812B LEDs connected to attiny13 MCU. Tree is made from 5 stripes with 5, 4, 3, 2 and 1 LEDs. LEDs are driven from single pinout PB4 of Attiny13 MCU.  MCU was put in cartridge from 35mm tape. As power supply I have used 5V from USB. Code is written in C.  There are five different effects for which you can modify brightness and delay.



Merry Boxes & LEDs









Project 4: JackBox by :



The holidays are a time for merry boxes & LEDs!

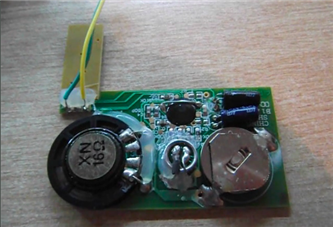

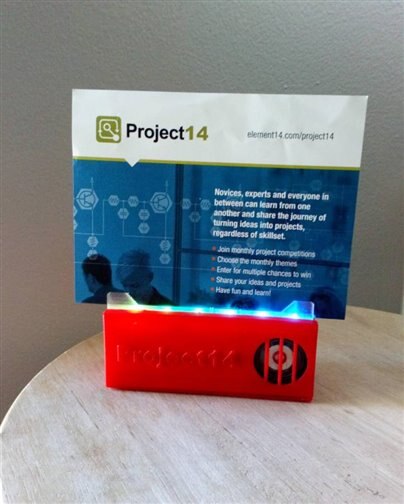

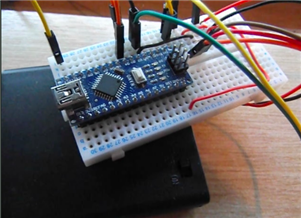

  has been looking forward to Christmas for some time and to making something electronicy with LEDs and Arduino. He loves a few LEDs and bits of tinsel. So he decided to have a go at the Merry Boxes and LEDS project. He started a while ago collecting bits to use anticipating a quick start, but Christmas preparations have intervened and he has only just been able to find some spare time. He's collected a few bits and a small wooden box and his intention is to make something relatively small that resides inside the box and then 'pops up'!  Having completed adding the sound he decided to improve the LED part a little bit. He took three of the LEDs white wooden snowflakes shapes and fixed them to the front and sides of the box. Rather than just these three LEDS on and off he decided to fade them on and off. To do this he just connected the three LEDs in parallel and then the positive (the anode) to the +5V from the Nano and the negative (the cathode) to the D5 output of the Nano. The LEDs will all come on when D5 is driven low. To create the fade on and off effect he used pulse width modulation implemented as next for loops, as illustrated in the code fragment below. He used a function just to make it tidier. The value input into the function controls the maximum brightness achieved by the LED, which also controls the frequency of the LED slowly pulsing.



JackBox





Product NameQuantity
Arduino Nano1Buy NowBuy Now



Product Name
LEDs



Also on Project14 from :

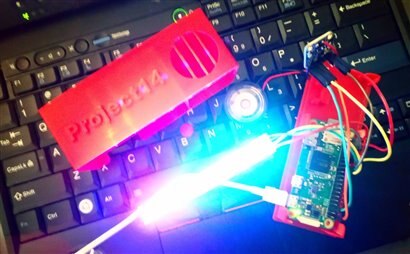

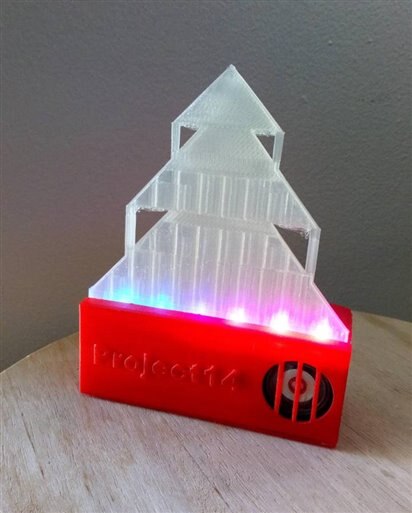

Project 5: Mini Singing Holiday Tree by :



The holidays are a time for music, merriment, and of course Mini Singing Holiday Trees!

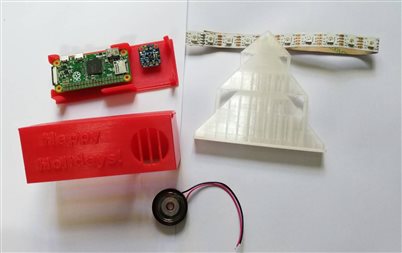

This is a great weekend project to undertake, to get you in the holiday spirit ! In all, it should be a few hours of 3D printing, and then an hour or so in soldering the circuit together, and uploading the python code to the Pi. As part of the build he is using a Raspberry Pi Zero W as the heart of the project, and a RGB led strip (APA102) to diffuse the LEDs through the 3D printed tree . In addition he is also using an I2S class D mono Amp breakout board by Adafruit based on MAX98357 chip and a small 8 ohms speaker, to play some Holiday songs.



Mini Singing Holiday Tree







Product Name
Raspberry Pi Zero W
APA102 RGB led strip
I2S class D mono Amp breakout board by Adafruit based on MAX98357 chip
8 ohms speaker



Also on Project14 by :



Project 6: Santa Incoming Chimney! [SIC] by :



The holidays are a time for watching for Santa and not letting sleep get in the way!

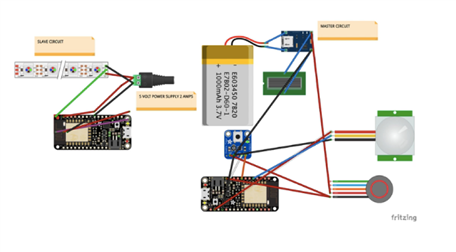

ESP-Now device for warning of the approach of Santa!  This device has a Master which detects with PIR or a wire break to set a pin low--it is monitored when a TPL 5111 wakes the unit up.  The solar charger keeps the device charged with a battery mounted on the roof.  The receiver device (Slave) constantly monitors for the ESP-Now communication from the master and announces the arrival of St. Nick with a bright cascade of Led's.



Santa Incoming Chimney! [SIC]









Product Name
ESP-NOW
PIR
3.7 V Battery
