the VenTTracker project - Blog #14 - (aka #11 bis) - Environmental Monitor Revisited - Version 2
Introduction
A few weeks ago we built our environmental sensor and monitor based on a SparkFun Environmental Combo Breakout - CCS811/BME280 that includes a CS811 (TVOC and eCO2) and a BME280 (temperature, humidity and barometric pressure)
See : VenTTracker #11 - Wireless Environmental Monitor on Arduino Nano 33 IoT
Unfortunately the combo module stopped working three days after it was turned on. Probably some of the children at home touched it, we don't know. We couldn't get it back because it shorted the I2C communication lines.
We ordered a new module from Sparkfun but it has been on the way for two weeks and it has not yet arrived and we do not have a delivery date.
So we decided to try two cheap I2C 3V3 modules that we find on the Amazon Spain website of two European sellers who promised to ship in the same week.
CCS811 Air Quality Sensor for VOC, TVOC and eCO2
https://www.amazon.es/gp/product/B08M615S73/
GY-21 HTU21 humidity and temperature Sensor
https://www.amazon.es/gp/product/B07PFHM9HN
We modified the software to use the HTU21 module instead of the BME280. Fortunately everything has worked without problems.
We have only lost the barometric pressure measurement but we maintain compatibility with the previous version.

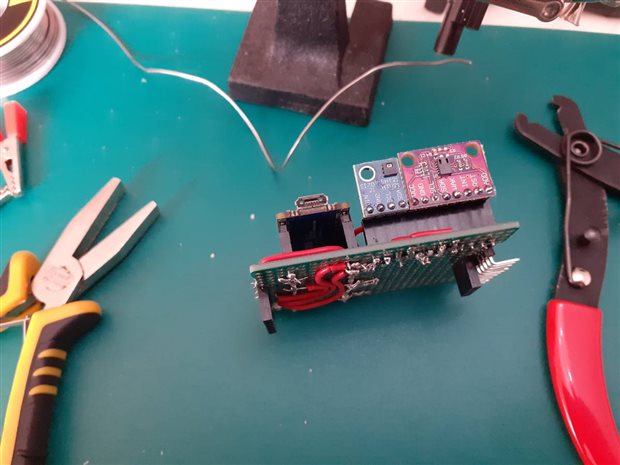

Once the operation has been verified, we solder a new header for the two modules and place them inside our box.

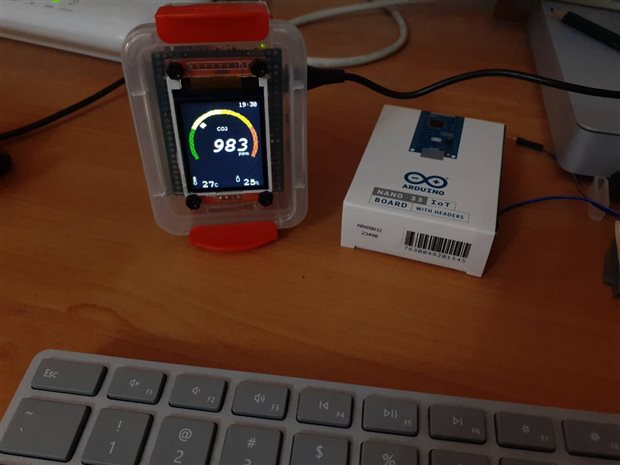

This is the result.
Versions
Environmental Sensor and Monitor Version 1
see: VenTTracker #11 - Wireless Environmental Monitor on Arduino Nano 33 IoT

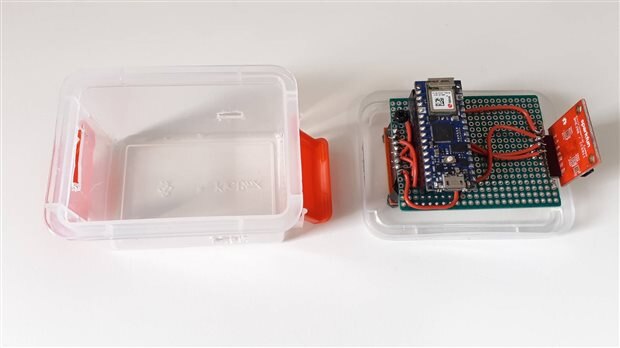

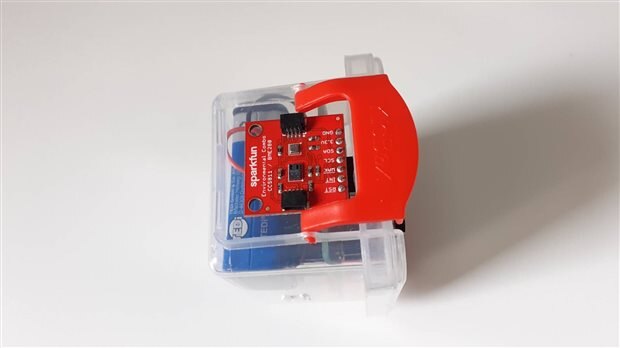

In the first version, the environmental combo module was located outside the box. Maybe that's why it ended up "breaking by itself."
We will not make the same mistake again.
Environmental Sensor and Monitor Version 2

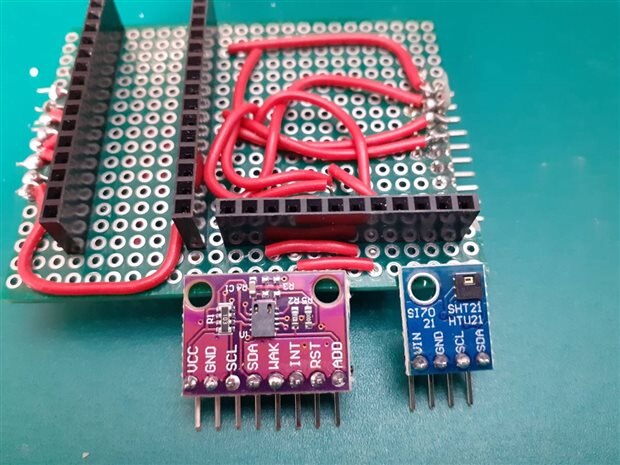

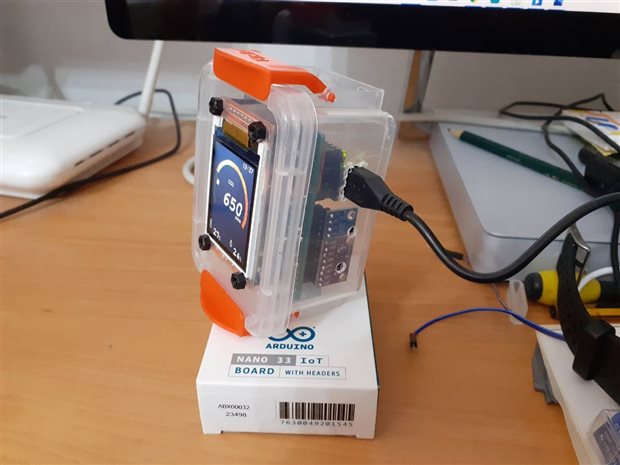

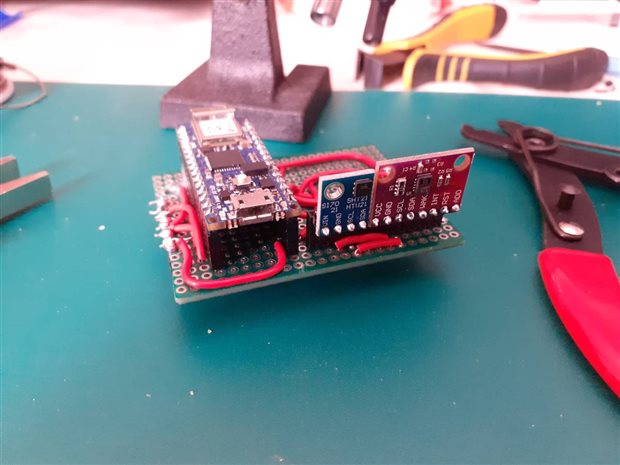

In the new version, we place the sensors on one side in which we will make some holes for the air from outside to reach them.
Connections
WAK - this is the wakeup pin for the CS811 sensor. It needs to be pulled to ground in order to communicate with the sensor.
Vin - this is the power pin. Both sensors use 3.3V
GND - common ground for power and logic
SCL - this is the I2C clock pin, connected to our Arduino Nano 33 IoTArduino Nano 33 IoT I2C clock line.
SDA - this is the I2C data pin, connected to our Arduino Nano 33 IoT I2C data line.
At the bottom we keep the row of pins for the connection of the Sparkfun environmental combo that by default has a different I2C address than the new CS811 module.

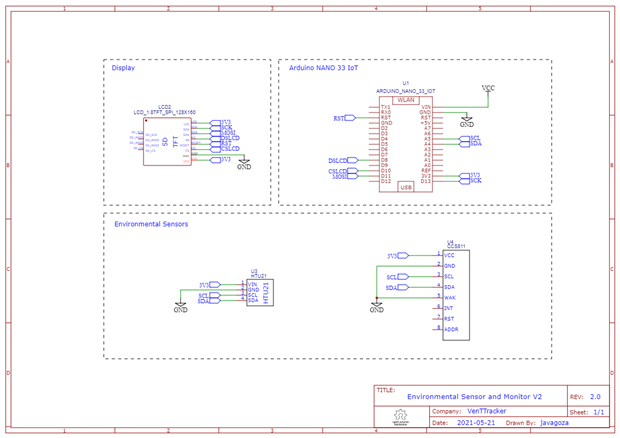

Schematics

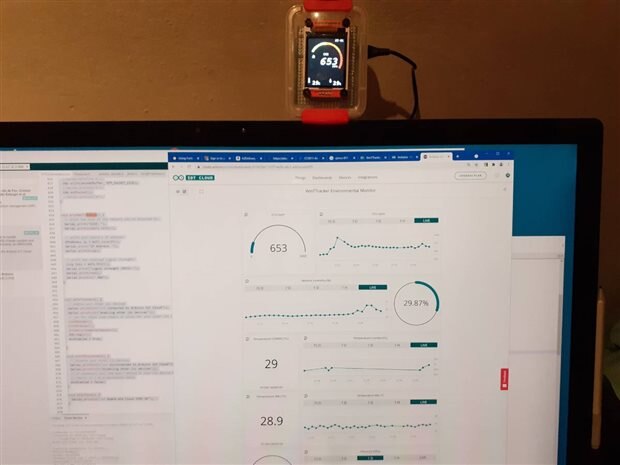

Visualizing VenTTracker Data on Arduino IoT Cloud with PC
We maintain compatibility with the THING created in the previous version. We have only lost the barometric pressure measurement.

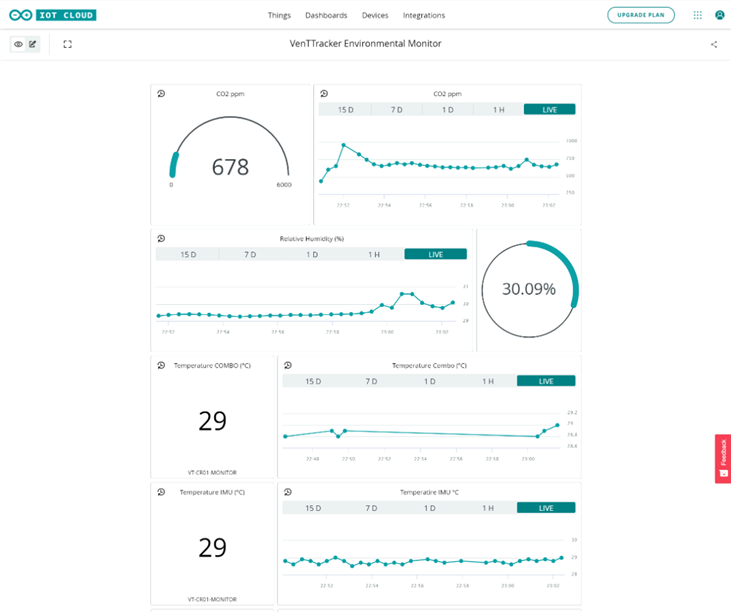

Live Data
Historical data

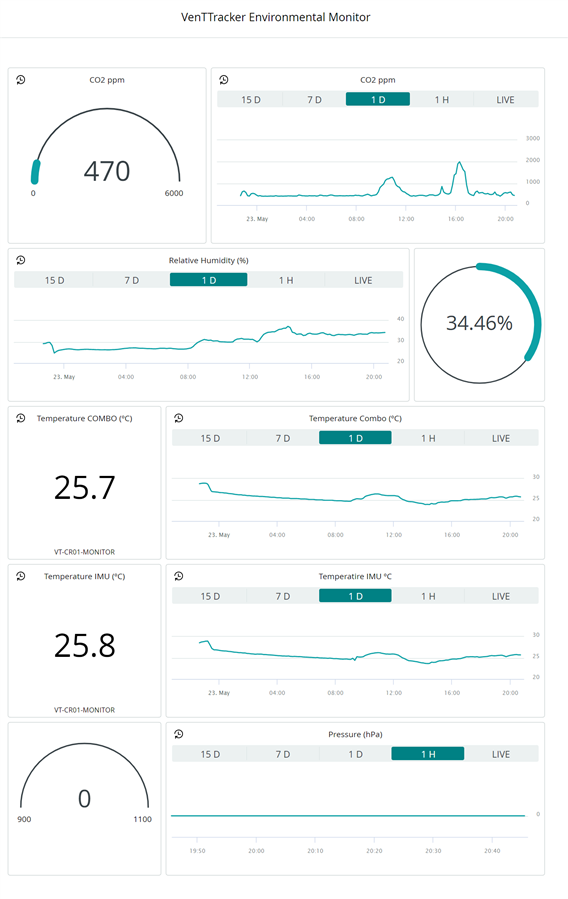

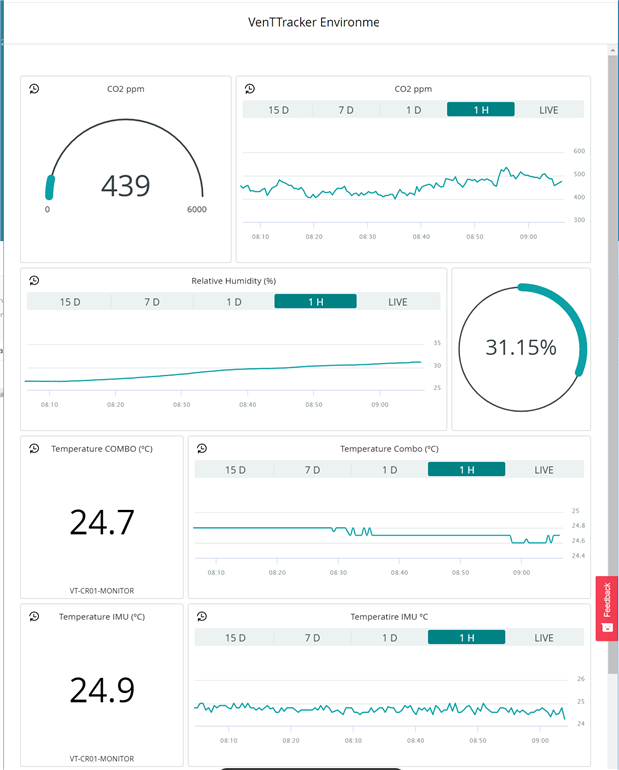

1 Hour view
1 Day View
Visualizing VenTTracker Data on Arduino IoT Cloud with Android
We can monitor our sensor also from a mobile.
Code with connection to the Arduino IoT Cloud
Here is the complete code used during the demos. It has a connection to the android iot cloud and synchronizes the device's time using NTP UDP.
TLS connection and initialization flow of I2C sensors.
The connection with the sensors is made once the TLS connection has been started, which requires the use of the cryptoprocessor that shares the I2C bus with our sensors. The call to initialize our sensors is made from a callback function that Wifinina will call when it has finished establishing the TLS session.
/*
This is an example for testing the VenTTracker Environmental Sensor
connected to Arduino IoT Cloud.
Displays data in a ST7735 LCD Display
Uses CCS811 and HTU21 modules
Cloud Variables:
int cO2_Concentration_ppm;
float pressure_bar;
CloudRelativeHumidity relative_humidity;
CloudTemperatureSensor temperature_combo_celsius;
CloudTemperatureSensor temperature_imu_celsius;
Author: Enrique Albertos
Date: 2021-05-21
*/
//#define DEBUG
#include "thingProperties.h"
#include <SPI.h>
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_ST7735.h> // Hardware-specific library for ST7735
#include "fonts/FreeMonoBoldOblique18pt7b.h"
#include "fonts/FreeMonoBold9pt7b.h"
#include "SparkFunCCS811.h" //Click here to get the library: http://librarymanager/All#SparkFun_CCS811
#include "SparkFunHTU21D.h"
#include <SparkFunLSM6DS3.h>
#include <Timezone.h> // https://github.com/JChristensen/Timezone
#define GAUGE_GREEN 0x0320
#define GAUGE_YELLOW 0xFFE0
#define GAUGE_ORANGE 0xFC60
#define GAUGE_RED 0xF800
#define ST77XX_GRAY_C8 0xCE59
#define ST77XX_GRAY_FA 0xFFDF
#define CCS811_ADDR 0x5A //Alternate I2C Address
CCS811 myCCS811(CCS811_ADDR);
LSM6DS3 IMU(I2C_MODE, 0x6A);
HTU21D myHumidity;
int status = WL_IDLE_STATUS;
///////please enter your sensitive data in the Secret tab/arduino_secrets.h
char ssid[] = SECRET_SSID; // your network SSID (name)
char pass[] = SECRET_PASS; // your network password (use for WPA, or use as key for WEP)
int keyIndex = 0; // your network key index number (needed only for WEP)
TimeChangeRule myDST = {"CEDT", Last, Sun, Mar, 2, 120}; // Daylight time = UTC + 2 hours
TimeChangeRule mySTD = {"CEST", Last, Sun, Nov, 2, 60}; // Standard time = UTC + 1 hour
Timezone myTZ(myDST, mySTD);
unsigned int localPort = 2390; // local port to listen for UDP packets
IPAddress timeServer(129, 6, 15, 28); // time.nist.gov NTP server
const int NTP_PACKET_SIZE = 48; // NTP timestamp is in the first 48 bytes of the message
byte packetBuffer[ NTP_PACKET_SIZE]; //buffer to hold incoming and outgoing packets
// A UDP instance to let us send and receive packets over UDP
WiFiUDP Udp;
long lastEnvironmentUpdate;
long lastTimeUpdate;
#define SCREEN_WIDTH 128 // OLED display width, in pixels
#define SCREEN_HEIGHT 160 // OLED display height, in pixels
#define TFT_CS 10
#define TFT_RST -1 // Or set to -1 and connect to Arduino RESET pin
#define TFT_DC 8
Adafruit_ST7735 tft(TFT_CS, TFT_DC, TFT_RST);
#define DEG2RAD 0.0174532925
// icons
const unsigned short termo6x16[96] PROGMEM={
0x0000, 0x31A6, 0xFFFF, 0xFFFF, 0x31A6, 0x0000, 0x0000, 0xFFFF, 0x31A6, 0x0000, 0xFFFF, 0x0000, 0x0000, 0xFFFF, 0xFFFF, 0x0000, // 0x0010 (16) pixels
0xFFFF, 0x0000, 0x0000, 0xFFFF, 0x31A6, 0x0000, 0xFFFF, 0x0000, 0x0000, 0xFFFF, 0xFFFF, 0x0000, 0xFFFF, 0x0000, 0x0000, 0xFFFF, // 0x0020 (32) pixels
0x31A6, 0x0000, 0xFFFF, 0x0000, 0x0000, 0xFFFF, 0xFFFF, 0x0000, 0xFFFF, 0x0000, 0x0000, 0xFFFF, 0x31A6, 0x0000, 0xFFFF, 0x0000, // 0x0030 (48) pixels
0x0000, 0xFFFF, 0xFFFF, 0x0000, 0xFFFF, 0x0000, 0x0000, 0xFFFF, 0x31A6, 0x0000, 0xFFFF, 0x0000, 0x0000, 0xFFFF, 0x31A6, 0x0000, // 0x0040 (64) pixels
0xFFFF, 0x0000, 0x31A6, 0xD69A, 0x31A6, 0x0000, 0xD69A, 0x31A6, 0xFFFF, 0x31A6, 0x0000, 0x0000, 0x0000, 0xFFFF, 0xFFFF, 0x31A6, // 0x0050 (80) pixels
0x31A6, 0x0000, 0x0000, 0xFFFF, 0x31A6, 0xFFFF, 0x31A6, 0x0000, 0xFFFF, 0x31A6, 0x0000, 0x31A6, 0xFFFF, 0xFFFF, 0x31A6, 0x0000, // 0x0060 (96) pixels
};
const unsigned short humidity6x16[96] PROGMEM={
0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0xE71C, 0xE71C, // 0x0010 (16) pixels
0x0000, 0x0000, 0x0000, 0x0000, 0xFFFF, 0xFFFF, 0x0000, 0x0000, 0x0000, 0xC638, 0xE71C, 0xE71C, 0xC638, 0x0000, 0x0000, 0xFFFF, // 0x0020 (32) pixels
0x0000, 0x0000, 0xFFFF, 0x0000, 0x0000, 0xFFFF, 0x0000, 0x0000, 0xFFFF, 0x0000, 0xE71C, 0xC638, 0x0000, 0x0000, 0xC638, 0xE71C, // 0x0030 (48) pixels
0xFFFF, 0x0000, 0x0000, 0x0000, 0x0000, 0xFFFF, 0xFFFF, 0x0000, 0x0000, 0x0000, 0x0000, 0xFFFF, 0xFFFF, 0x0000, 0x0000, 0x0000, // 0x0040 (64) pixels
0x0000, 0xFFFF, 0xFFFF, 0x0000, 0x0000, 0x0000, 0x0000, 0xFFFF, 0xE71C, 0xC638, 0x0000, 0x0000, 0xC638, 0xE71C, 0x0000, 0xE71C, // 0x0050 (80) pixels
0xFFFF, 0xFFFF, 0xE71C, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, 0x0000, // 0x0060 (96) pixels
};
typedef struct {
const uint16_t *data;
uint16_t width;
uint16_t height;
uint8_t dataSize;
} tImage;
const tImage termo3 = {termo6x16, 6, 16, 8};
const tImage humidity = {humidity6x16, 6, 16, 8};
TimeChangeRule *tcr; // pointer to the time change rule, use to get TZ abbrev
bool envEnabled = false;
void setup() {
#ifdef DEBUG
Serial.begin(9600);
delay(1500);
#endif
initProperties();
// Connect to Arduino IoT Cloud
ArduinoCloud.begin(ArduinoIoTPreferredConnection);
ArduinoCloud.addCallback(ArduinoIoTCloudEvent::CONNECT, onIoTConnect);
ArduinoCloud.addCallback(ArduinoIoTCloudEvent::DISCONNECT, onIoTDisconnect);
ArduinoCloud.addCallback(ArduinoIoTCloudEvent::SYNC, onIoTSync);
}
void loop()
{
unsigned long msNow = millis();
ArduinoCloud.update();
if (envEnabled && msNow - lastTimeUpdate >= 1000 )
{
time_t utc = now();
time_t local = myTZ.toLocal(utc, &tcr);
setTime(myTZ.toUTC(compileTime()));
displayDateTime(local, tcr -> abbrev);
lastTimeUpdate = msNow;
}
//Check to see if data is available
if (envEnabled && msNow - lastEnvironmentUpdate >= 10000 && myCCS811.dataAvailable())
{
myCCS811.readAlgorithmResults();
const float humd = myHumidity.readHumidity();
const float temp = myHumidity.readTemperature();
//This sends the temperature data to the CCS811
myCCS811.setEnvironmentalData(humd, temp);
displayCO2Level(myCCS811.getCO2());
displayTemperature((int) temp);
displayHumidity((int) humd);
cO2_Concentration_ppm = myCCS811.getCO2();
temperature_combo_celsius =((int)(temp *10) )/ 10.0;
// pressure_bar =(int) (myBME280.readFloatPressure()/100); //hpa
relative_humidity = humd;
temperature_imu_celsius = ((int)(IMU.readTempC()*10)) / 10.0;
lastEnvironmentUpdate = msNow;
}
}
void initEnvironmentalSensors(void) {
Wire.begin(); //Inialize I2C Hardware
if (myCCS811.begin() == false)
{
#ifdef DEBUG
Serial.print("CCS811 error. Please check wiring. Freezing...");
#endif
while (1);
}
myHumidity.begin();
}
void initWifi(void) {
if (WiFi.status() == WL_NO_MODULE) {
#ifdef DEBUG
Serial.println("Communication with WiFi module failed!");
#endif
// don't continue
while (true);
}
String fv = WiFi.firmwareVersion();
if (fv < WIFI_FIRMWARE_LATEST_VERSION) {
#ifdef DEBUG
Serial.println("Please upgrade the firmware");
#endif
}
// attempt to connect to WiFi network:
while (status != WL_CONNECTED) {
#ifdef DEBUG
Serial.print("Attempting to connect to SSID: ");
Serial.println(ssid);
#endif
// Connect to WPA/WPA2 network. Change this line if using open or WEP network:
status = WiFi.begin(ssid, pass);
// wait 10 seconds for connection:
delay(10000);
}
#ifdef DEBUG
Serial.println("Connected to WiFi");
printWifiStatus();
#endif
}
// Function to return the compile date and time as a time_t value
time_t compileTime()
{
const time_t FUDGE(10); // fudge factor to allow for compile time (seconds, YMMV)
const char *compDate = __DATE__, *compTime = __TIME__, *months = "JanFebMarAprMayJunJulAugSepOctNovDec";
char chMon[4], *m;
tmElements_t tm;
strncpy(chMon, compDate, 3);
chMon[3] = '\0';
m = strstr(months, chMon);
tm.Month = ((m - months) / 3 + 1);
tm.Day = atoi(compDate + 4);
tm.Year = atoi(compDate + 7) - 1970;
tm.Hour = atoi(compTime);
tm.Minute = atoi(compTime + 3);
tm.Second = atoi(compTime + 6);
time_t t = makeTime(tm);
return t + FUDGE; // add fudge factor to allow for compile time
}
// Display functions -----------------------------------------------------------------
void initDisplay(void) {
tft.initR(INITR_BLACKTAB); // Init ST7735S chip, black tab
tft.setRotation(2);
tft.fillScreen(ST77XX_BLACK);
tft.drawRGBBitmap(3,135, (const uint16_t *)termo3.data, termo3.width, termo3.height); // Copy to screen
tft.drawRGBBitmap( tft.width()/2+15,135, (const uint16_t *)humidity.data, humidity.width, humidity.height); // Copy to screen
}
void displayTemperature(const int temperature){
tft.setTextSize(0);
tft.setCursor(6,156);
tft.setTextColor(ST77XX_GRAY_FA);
tft.setFont(&FreeMonoBold9pt7b);
drawUpdatedValue2d(temperature, 18 ,156);
tft.setFont(NULL);
tft.print("C");
}
void displayHumidity(const int humidity) {
tft.setTextSize(0);
tft.setTextColor(ST77XX_GRAY_FA);
tft.setFont(&FreeMonoBold9pt7b);
drawUpdatedValue2d(humidity, tft.width()/2 + 28,156);
tft.setFont(NULL);
tft.print("%");
}
void displayCO2Level(const int co2level){
tft.setFont(NULL);
tft.setCursor(55,50);
tft.setTextColor(ST77XX_GRAY_FA);
tft.print("CO2");
tft.setCursor(18,82);
tft.setTextColor(ST77XX_GRAY_FA);
tft.setTextSize(0);
tft.setFont(&FreeMonoBoldOblique18pt7b);
drawUpdatedValue4d(co2level,20,88);
tft.setFont(NULL);
tft.setCursor(88,90);
tft.setTextColor(ST77XX_GRAY_FA);
tft.print("ppm");
drawGauge(co2level, 400, 8192);
tft.setFont(NULL);
}
void drawUpdatedValue4d(const int number, int x, int y)
{
int16_t x1, y1;
uint16_t w, h;
char buffer[5]="6666";
snprintf(buffer,sizeof(buffer), "%4d", number);
tft.getTextBounds(buffer, x, y, &x1, &y1, &w, &h); //calc width of new string
tft.fillRect(x,y-h,w+4, h+2, ST77XX_BLACK);
tft.setCursor(x,y);
tft.print(buffer);
}
void drawUpdatedValue2d(const int number, int x, int y)
{
int16_t x1, y1;
uint16_t w, h;
char buffer[3]="66";
snprintf(buffer,sizeof(buffer), "%2d", number);
tft.getTextBounds(buffer, x, y, &x1, &y1, &w, &h); //calc width of new string
tft.fillRect(x,y-h,w+4, h+2, ST77XX_BLACK);
tft.setCursor(x,y);
tft.print(buffer);
}
// format and print a time_t value, with a time zone appended.
void displayDateTime(time_t t, const char *tz)
{
char buf[8];
sprintf(buf, "%.2d:%.2d", hour(t), minute(t));
tft.fillRect(tft.width() - 33, 3,33,12,ST77XX_BLACK);
tft.setFont(NULL);
tft.setTextSize(0);
tft.setCursor(tft.width() - 33, 3);
tft.setTextColor(ST77XX_GRAY_FA);
tft.print(buf);
}
void drawGauge (const int level, const int min, const int max) {
static int lastValue;
int degrees = (log(level) / log(2) - log(min) / log(2)) / (log(max)/log(2) - log(min)/log(2)) * 240;
fillArc2(tft.width()/2, tft.height()/2-8, -120, 20, tft.width()/2-6, tft.width()/2-6, 6, GAUGE_GREEN);
fillArc2(tft.width()/2, tft.height()/2-8, -60, 20, tft.width()/2-6, tft.width()/2-6, 6, GAUGE_YELLOW);
fillArc2(tft.width()/2, tft.height()/2-8, 0, 20, tft.width()/2-6, tft.width()/2-6, 6, GAUGE_ORANGE);
fillArc2(tft.width()/2, tft.height()/2-8, 60, 20, tft.width()/2-6, tft.width()/2-6, 6, GAUGE_RED);
fillArc2(tft.width()/2, tft.height()/2-8, lastValue-120, 3, tft.width()/2-16, tft.width()/2-16, 6, ST7735_BLACK );
fillArc2(tft.width()/2, tft.height()/2-8, degrees-120, 3, tft.width()/2-16, tft.width()/2-16, 6, ST7735_WHITE );
lastValue = degrees;
}
// #########################################################################
// Draw a circular or elliptical arc with a defined thickness
// #########################################################################
// x,y == coords of centre of arc
// start_angle = 0 - 359
// seg_count = number of 3 degree segments to draw (120 => 360 degree arc)
// rx = x axis radius
// yx = y axis radius
// w = width (thickness) of arc in pixels
// colour = 16 bit colour value
// Note if rx and ry are the same then an arc of a circle is drawn
int fillArc2(int x, int y, int start_angle, int seg_count, int rx, int ry, int w, unsigned int colour)
{
byte seg = 3; // Segments are 3 degrees wide = 120 segments for 360 degrees
byte inc = 3; // Draw segments every 3 degrees, increase to 6 for segmented ring
// Calculate first pair of coordinates for segment start
float sx = cos((start_angle - 90) * DEG2RAD);
float sy = sin((start_angle - 90) * DEG2RAD);
uint16_t x0 = sx * (rx - w) + x;
uint16_t y0 = sy * (ry - w) + y;
uint16_t x1 = sx * rx + x;
uint16_t y1 = sy * ry + y;
// Draw colour blocks every inc degrees
for (int i = start_angle; i < start_angle + seg * seg_count; i += inc) {
// Calculate pair of coordinates for segment end
float sx2 = cos((i + seg - 90) * DEG2RAD);
float sy2 = sin((i + seg - 90) * DEG2RAD);
int x2 = sx2 * (rx - w) + x;
int y2 = sy2 * (ry - w) + y;
int x3 = sx2 * rx + x;
int y3 = sy2 * ry + y;
tft.fillTriangle(x0, y0, x1, y1, x2, y2, colour);
tft.fillTriangle(x1, y1, x2, y2, x3, y3, colour);
// Copy segment end to sgement start for next segment
x0 = x2;
y0 = y2;
x1 = x3;
y1 = y3;
}
}
// Debug helpers -----------------------------------------------------------------
void printWifiStatus() {
// print the SSID of the network you're attached to:
Serial.print("SSID: ");
Serial.println(WiFi.SSID());
// print your board's IP address:
IPAddress ip = WiFi.localIP();
Serial.print("IP Address: ");
Serial.println(ip);
// print the received signal strength:
long rssi = WiFi.RSSI();
Serial.print("signal strength (RSSI):");
Serial.print(rssi);
Serial.println(" dBm");
}
// Connection calbacks -----------------------------------------------------------------
void onIoTConnect() {
// enable your other i2c devices
#ifdef DEBUG
Serial.println(F(">>> connected to Arduino IoT Cloud"));
Serial.println(F("enabling other i2c devices"));
#endif
initEnvironmentalSensors();
IMU.begin();
initDisplay();
envEnabled = true;
}
void onIoTDisconnect() {
// disable your other i2c devices
#ifdef DEBUG
Serial.println(F(">>> disconnected to Arduino IoT Cloud"));
Serial.println(F("disabling other i2c devices"));
#endif
// if necessary call the end() method on your i2c device library or even get rid of them.
// really it's on a peripheral basis
envEnabled = false;
}
void onIoTSync() {
#ifdef DEBUG
Serial.println(">>> Board and Cloud SYNC OK");
#endif
}
VenTTracker Blogs
Github Project Repository
https://github.com/javagoza/venttracker.git
| Previous VenTTracker Blog | Next VenTTracker Blog |
|---|---|
| VenTTracker #12 - Window Anomaly Detection. Edge Impulse & Arduino Nano 33 IoT | VenTTracker #13 - Project wrap-up and Lessons learned |
