Add Pynq-Z2 board to Vivado

Jan Cumps

Instructions on how to add the Pynq-Z2Pynq-Z2 board to Vivado.

This allows you to create projects and custom FPGA bit streams for it.




image source: customer action video after completing the instruction video of Cathal McCabe listed at the end of this post.



In the Vivado project creation wizard, there is a possibility to prime your design from a board definition.

You don't need to find out what the exact FPGA is, and what hardware is available.

There are more project preparation tools. Constraint files and TCL files that fully define the board with all possibilities enabled.

This post focuses on the board definition.




Get the board file



The files listed on pync.io are not available. I found them here.




Install and register the board in Vivado

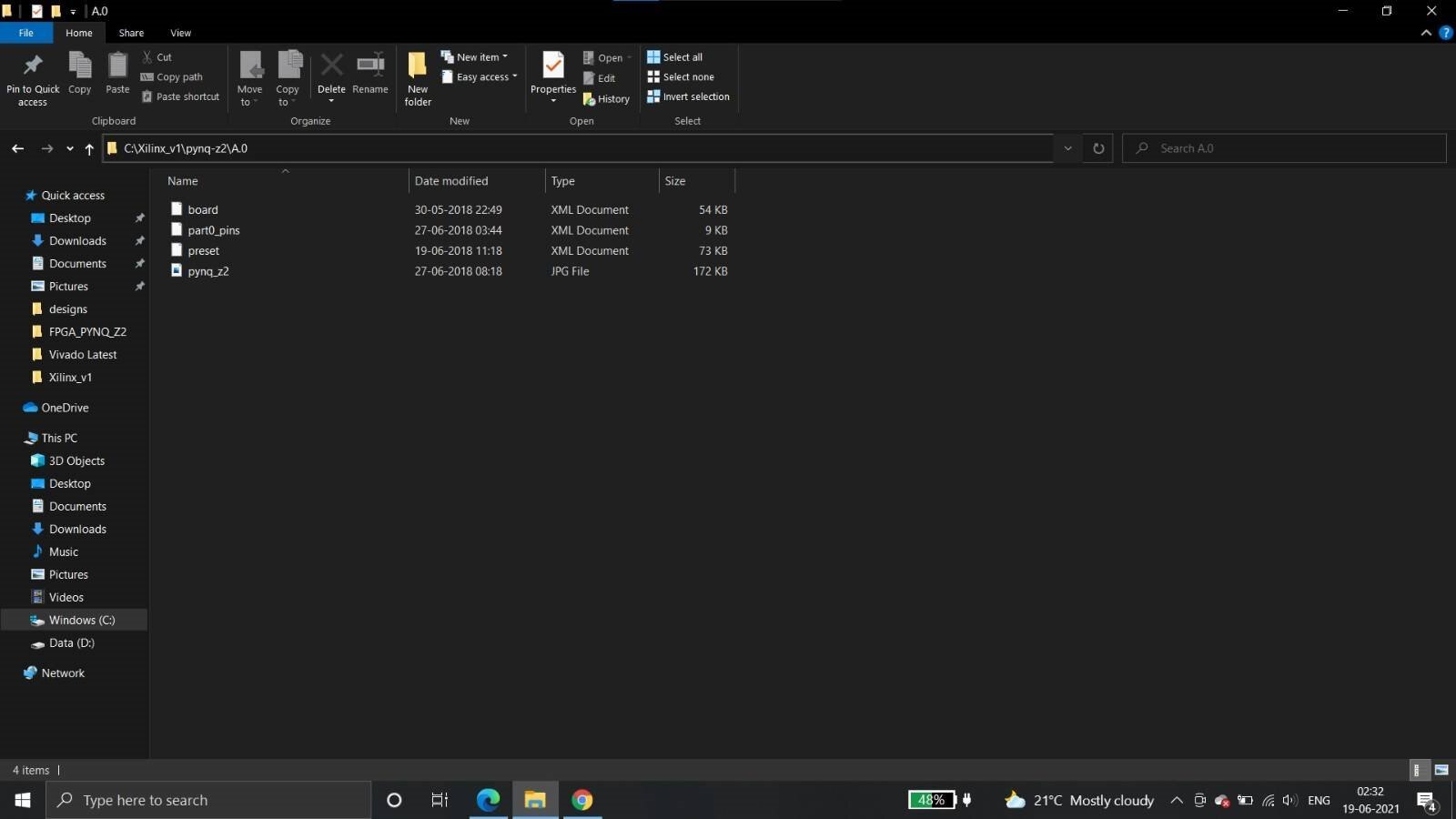

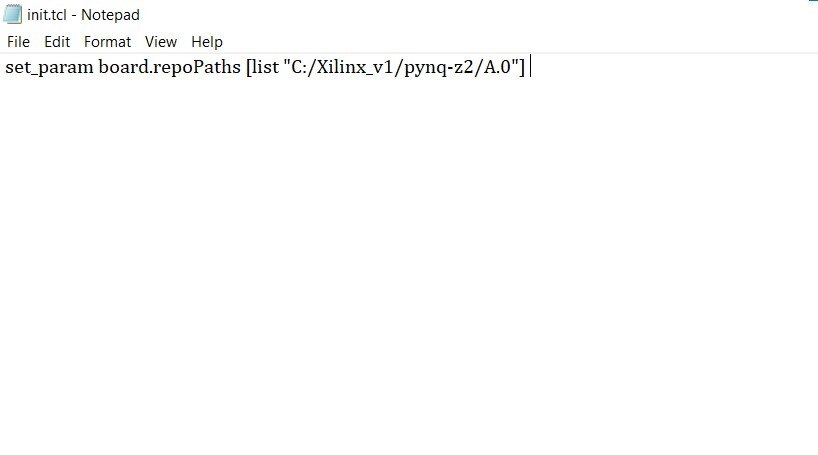

Then there are two options.

I used the 2nd option. You have to restart the editor.



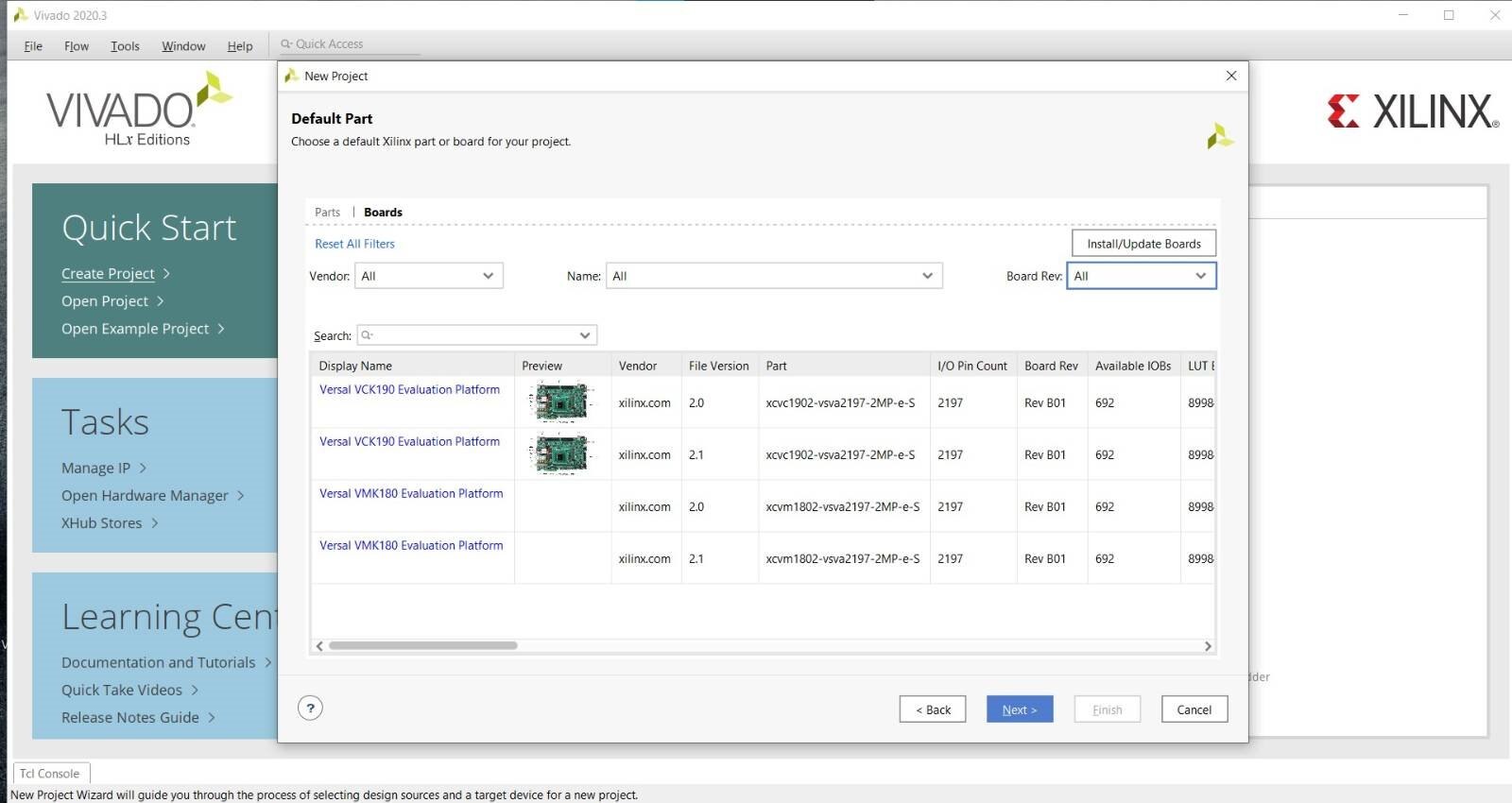

The result is that you can now create projects that have the right FPGA info for the Pynq-Z2:




My goal for this week is to replicate this exercise from Cathal McCabe from the Pynq community:



I attached the project to this post, and the jupyter notebook.

I changed some things:

32 bit GPIO instead of 64

A reset input for the Johnson Counter module

Translated the Verilog Counter code to VHDL.
